PLTU-700
PROBEST
90268090
China CE ROHS Low-Range Online Turbidity Analyzer for Tap Drinking Water Monitoring with Stable Data Quality Easy Maintenance Measurement Principle

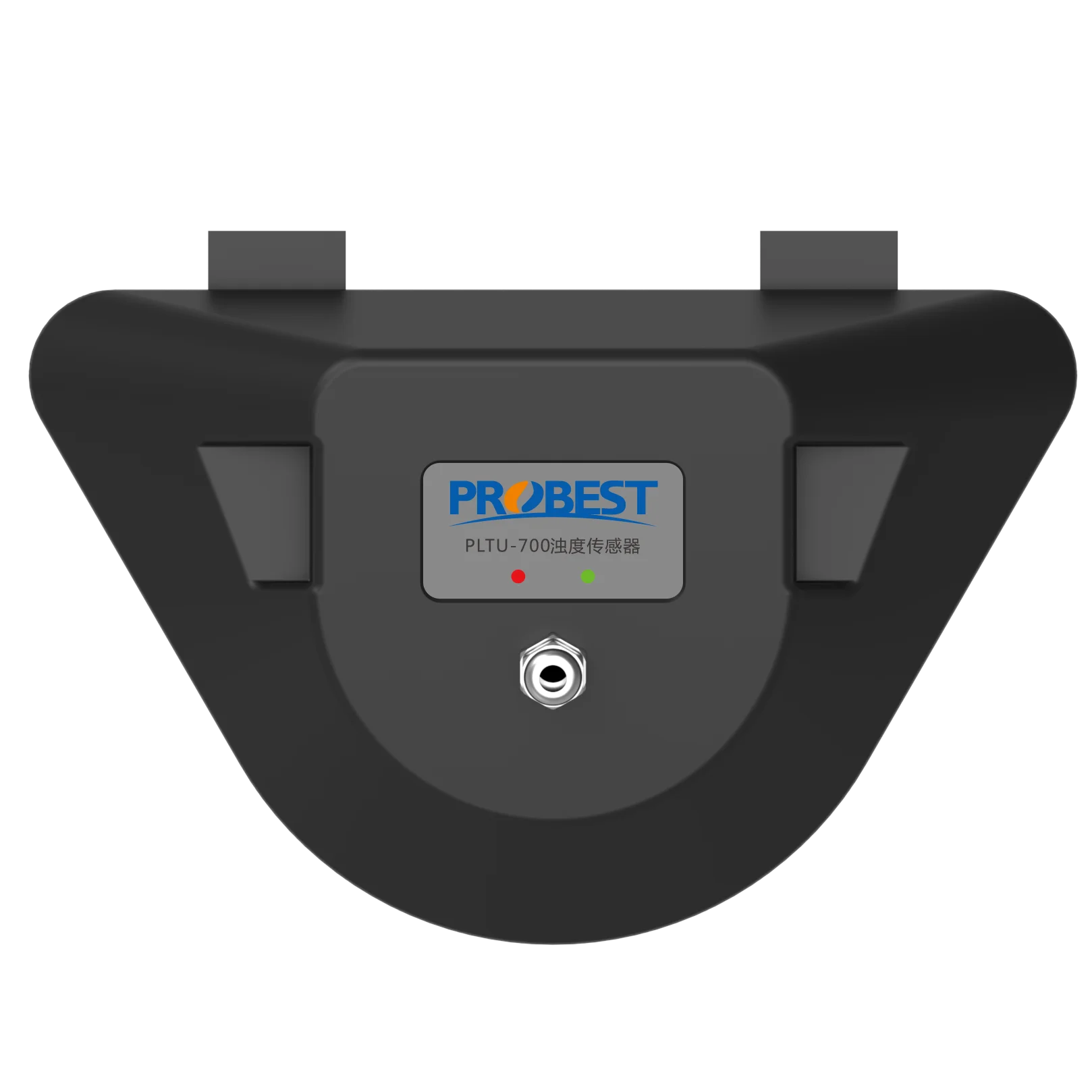

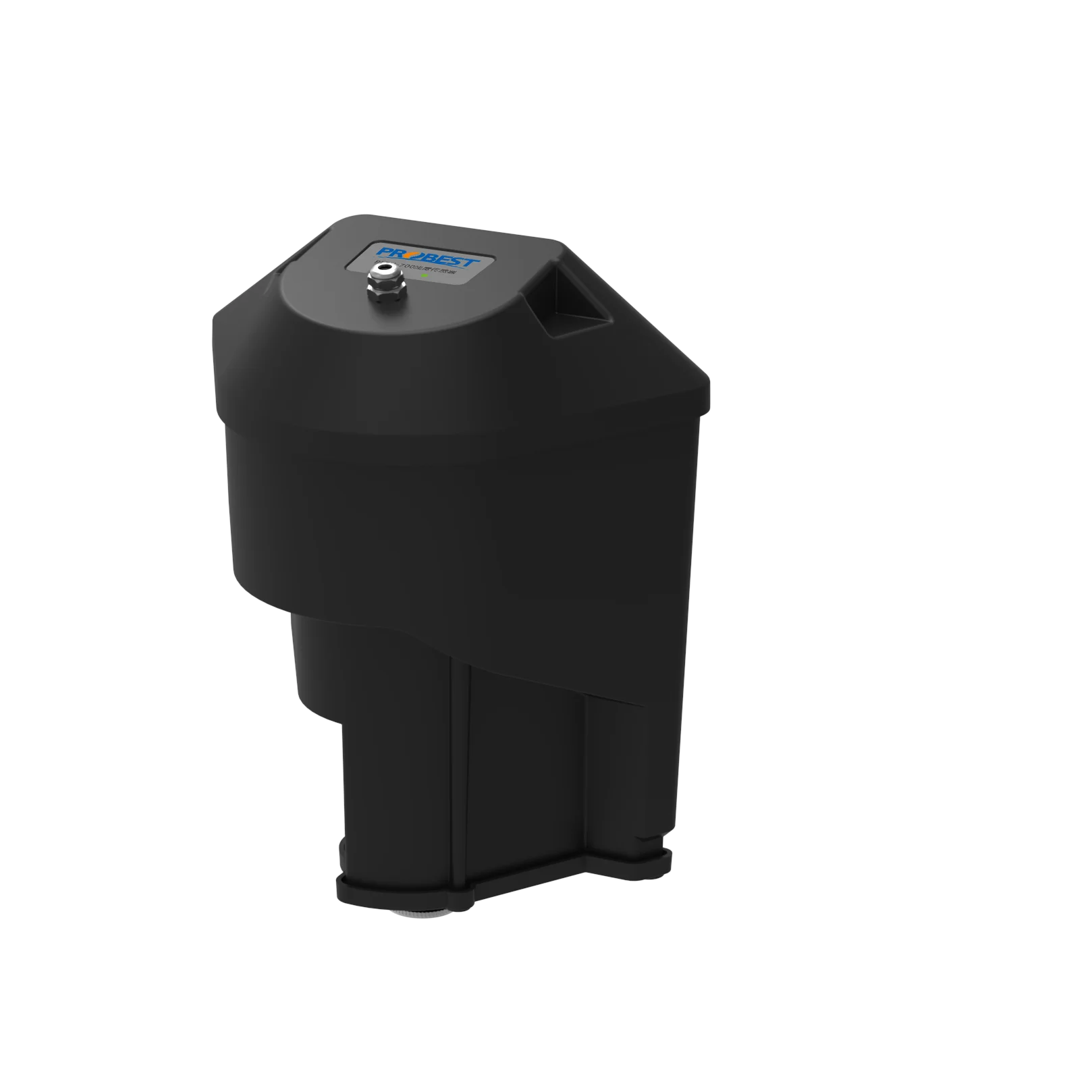

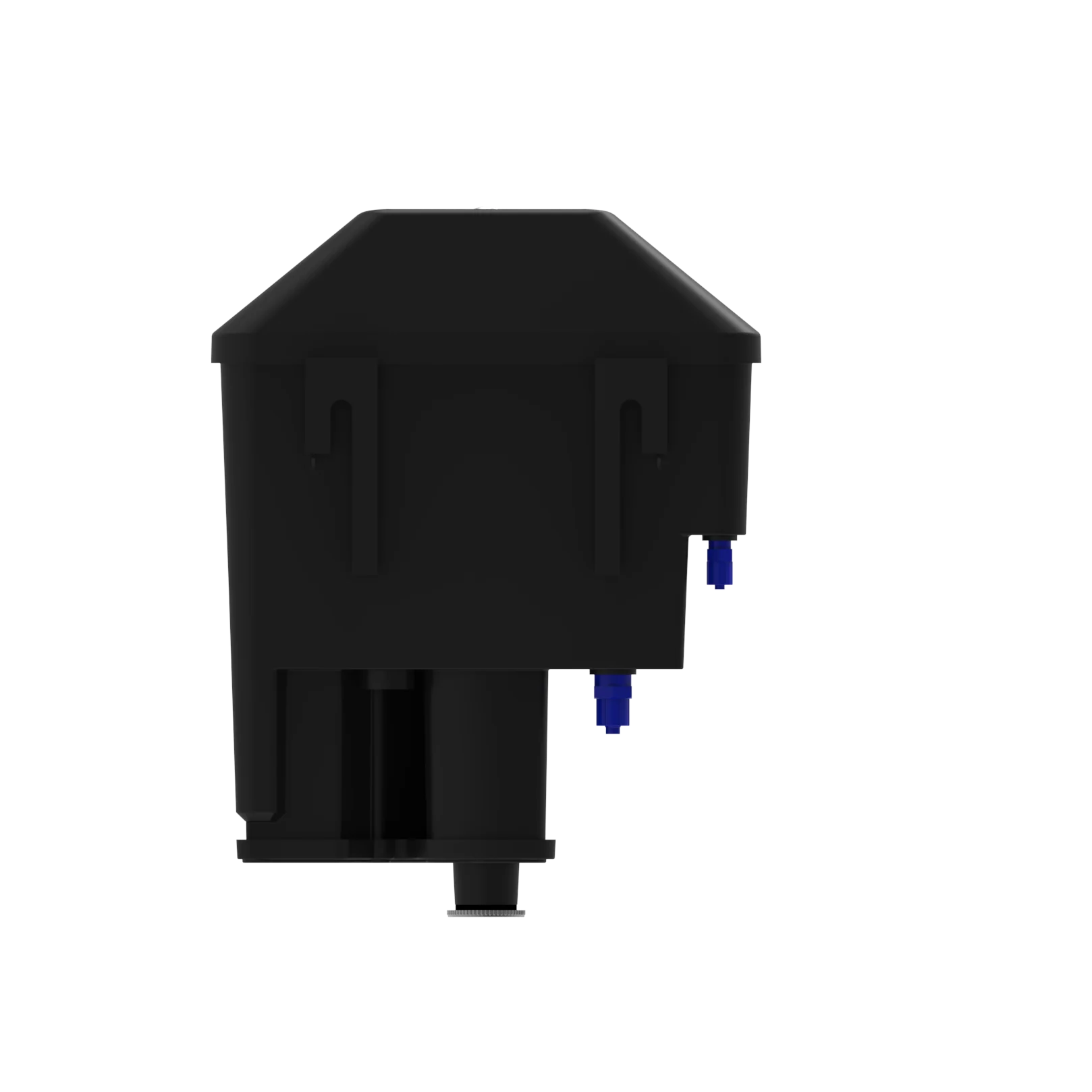

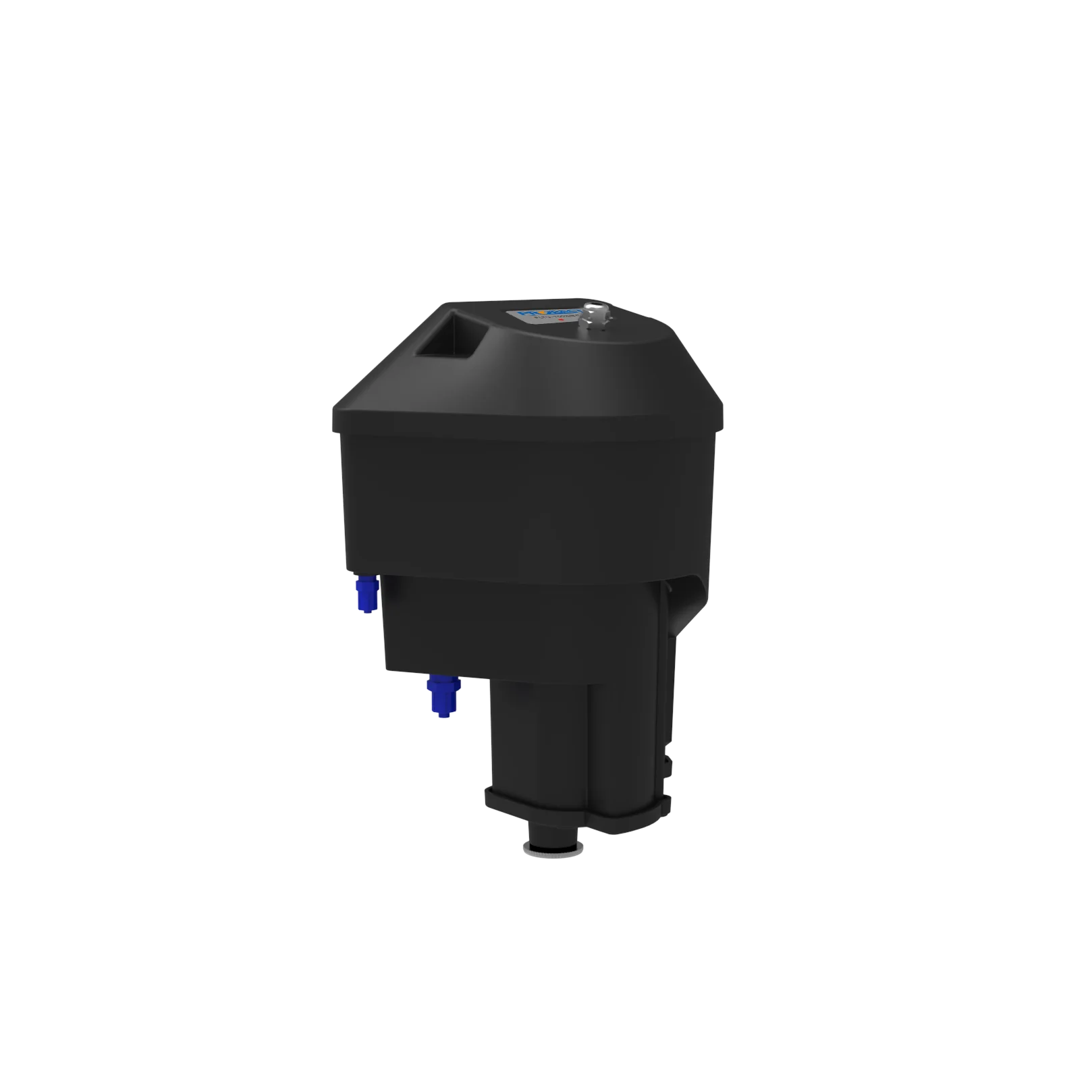

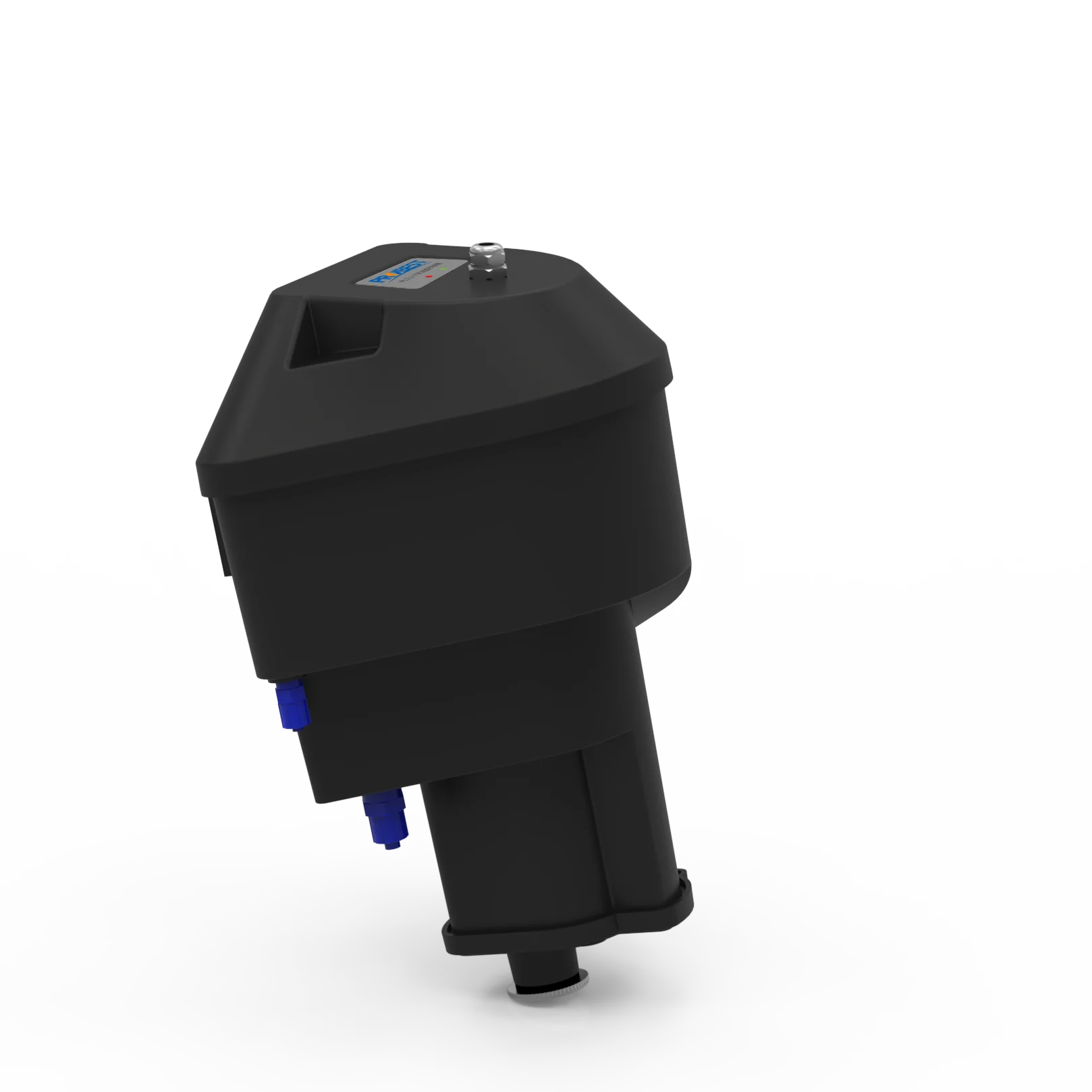

PLTU-700 low-range turbidity sensor guides the parallel light emitted by the light source downward into the water sample in the sensor. The light is scattered by the suspended sludges, and the scattered light at 90 degrees from the incident Angle is received by the silicon photocell receiver immersed in the water sample. The turbidity value is obtained by calculating the relationship between the 90 degrees scattered light and the incident light beam.
Features
² Stable data and good repeatability.
² Simple clean and maintenance.
² A scattering turbidity meter with continuous readings, designed for low range turbidity monitoring.
² Plug-and-play sensors quick and easy installation.
Applications
² Turbidity online monitoring of filtration of water plant, product Water and direct drinking water system.
² Turbidity online monitoring of recirculating cooling water and filter water in all kinds of industrial production and water reuse system.
Technical Specifications
Measurement range | 0.001-100 NTU |
Measurement Accuracy | ±2% of the reading or ±0.015NTU when the range is 0.001-40NTU,the bigger one; ±5% of the reading when the range is 40-100NTU |
Resolution | 0.001-0.1NTU,base on range |
Repeatability | ±2% |
Water flow | 300ml/min≤X≤700ml/min |
Calibration | Sample calibration, Slope calibration |
Pipe Fitting | Inlet:1/4NPT;Outlet:1/2NPT |
Main material | Body:ABS + SUS316L; Seal: Butyl Cyanide Rubber;Cable:PUR |
Power supply | AC:85-500VAC; DC:9-36VDC |
Output | 3-way 4-20mA |
Relay | Three-way relays, programmed parameter & value response. |
Communication protocol | MODBUS RS485 |
Storage temperature | -15-60℃ |
Measuring temperature | 0-45℃(Non-freezing) |
Dimension | Sensor:304 *207*392.5mm(L*W*H),Transmitter:145*125*162mm(L*W*H) |
Weight | Sensor:2.1KG;Transmitter:1.35KG |
Protective rate | Sensor:IP65(Indoor);Transmitter:IP66/ NEMA4X |
Cable length | Standard: 3m,not recommend to extend. |
Measurement range | 0.001-100 NTU |
Measurement Accuracy | ±2% of the reading or ±0.015NTU when the range is 0.001-40NTU,whichever is greater;±5% of the reading when the range is 40-100NTU |
Water flow | 300ml/min≤X≤700ml/min |
Calibration | Standard solution calibration,water ample calibration,zero calibration |
Pipe Fitting | Inlet：1/4NPT；Outlet：1/2NPT |
Main material | Body：ABS + SUS316L； Seal: Butyl Cyanide Rubber；Cable：PUR |
Power supply | AC：85-500VAC (50/60HZ) DC：9~36VDC |
Output | 3-way 4-20mA |
Relay | Three-way relays, programmed response parameter and response value. |
Communication protocol | MODBUS RS485 |
Storage temperature | -15-60℃ |
Measuring temperature | 0-45℃（Non-freezing） |
Dimension | Sensor：310 *210*410mm(L*W*H) Transmitter：145*125*162mm(L*W*H) |
Weight | Sensor：2.1KG；Transmitter：1.35KG |
Protective rate | Sensor：IP65(Indoor)；Transmitter：IP65/ NEMA4X |
Cable length | andard: 3m,not recommend to 100M extend. |
