PMI-800
PROBEST
Measurement Principle

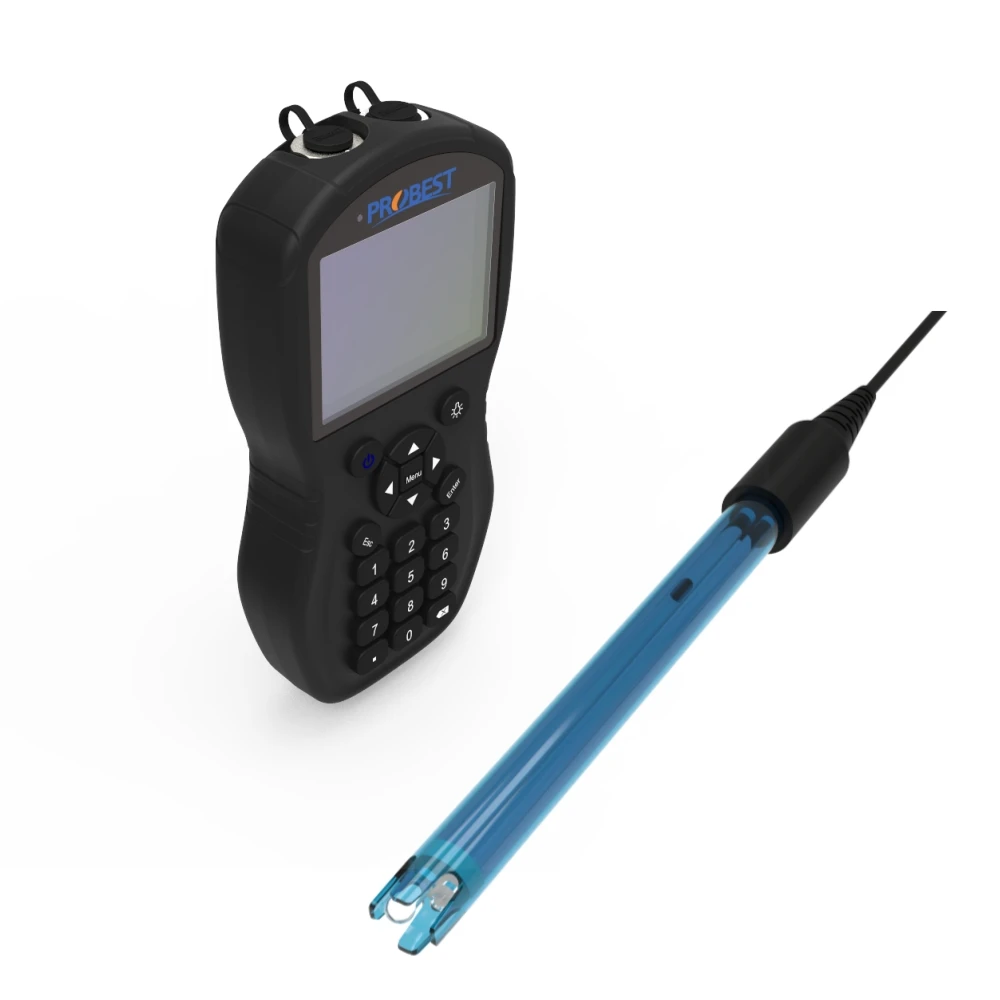

PMI800-EC portable conductivity analyzer consists of a
PMI-800 portable host and a PEC-300 portable conductivity sensor. The measurement principle is to put two parallel plates into the solution to be tested, add a certain potential (usually a sine wave voltage) to both ends of the plate, and then measure the current flowing between the plates. Conductivity is determined by the OHM formula based on voltage and current values
Features
With IP66 protected portable manual operator
Ergonomic curve design with rubber washers for hand-
held operation, easy to grasp in wet conditions
With USB interface, it can charge the built-in battery
and export data through USB
Applications
Widely used in water quality portable monitoring of pH/ORP in aquaculture, sewage treatment, surface water,
industrial and agricultural water supply and drainage, domestic water, boiler water quality, swimming pools, scientific research universities, etc.
Technical Specification
Measuring Range | Conductivity:0-2000us/cm ;2~19.99 mS/cm ;Temp.:0-50°C | ||||
Resolution | 0.01us/cmor0.01ms/cm(base on range) Temp.:0.1°C | ||||
Accuracy | Conductivity:±0.1%FS(base on range)Temp.:±0.5°C | ||||
EC sensor:PE | |||||
Housing Material | Portable Host:ABS+PC | ||||
Storage Temp. | 0-50°C | ||||
Operating Temp. | 0-40°C | ||||
Size/Weight | EC Sensor:Diam 12mm*Length120mm Weight:<0.1KG | ||||
Portable Host:203*100*43mm(L*W*H):Weight: 0.5KG | |||||
Protective rate | EC Sensor: IP68 Portable Host:IP66 | ||||
Cable length | Standard: 3M(Prolongable) | ||||
Display | 3.5” colorful LED, Adjustable when Backlight | ||||
Data Storage | 8G | ||||
