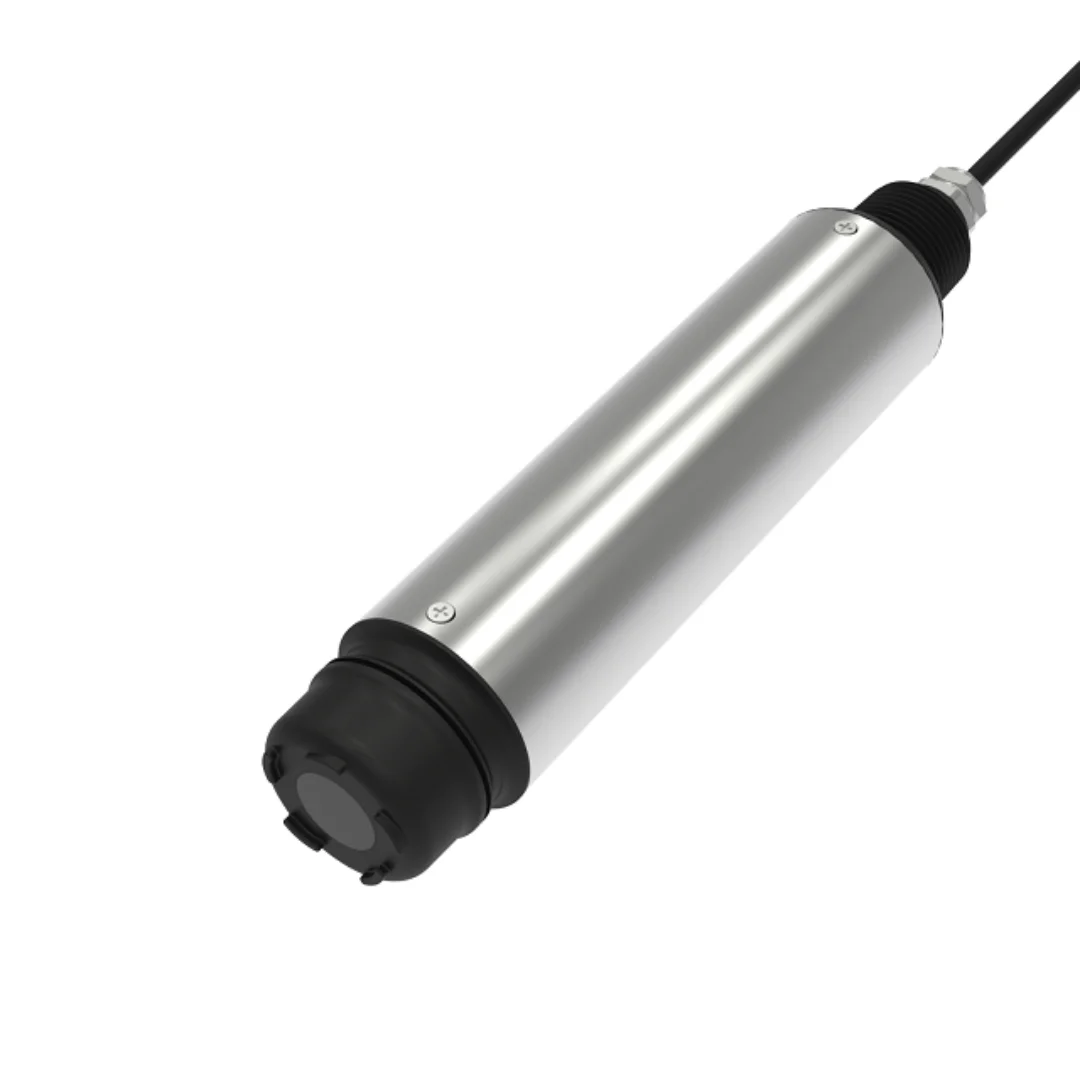

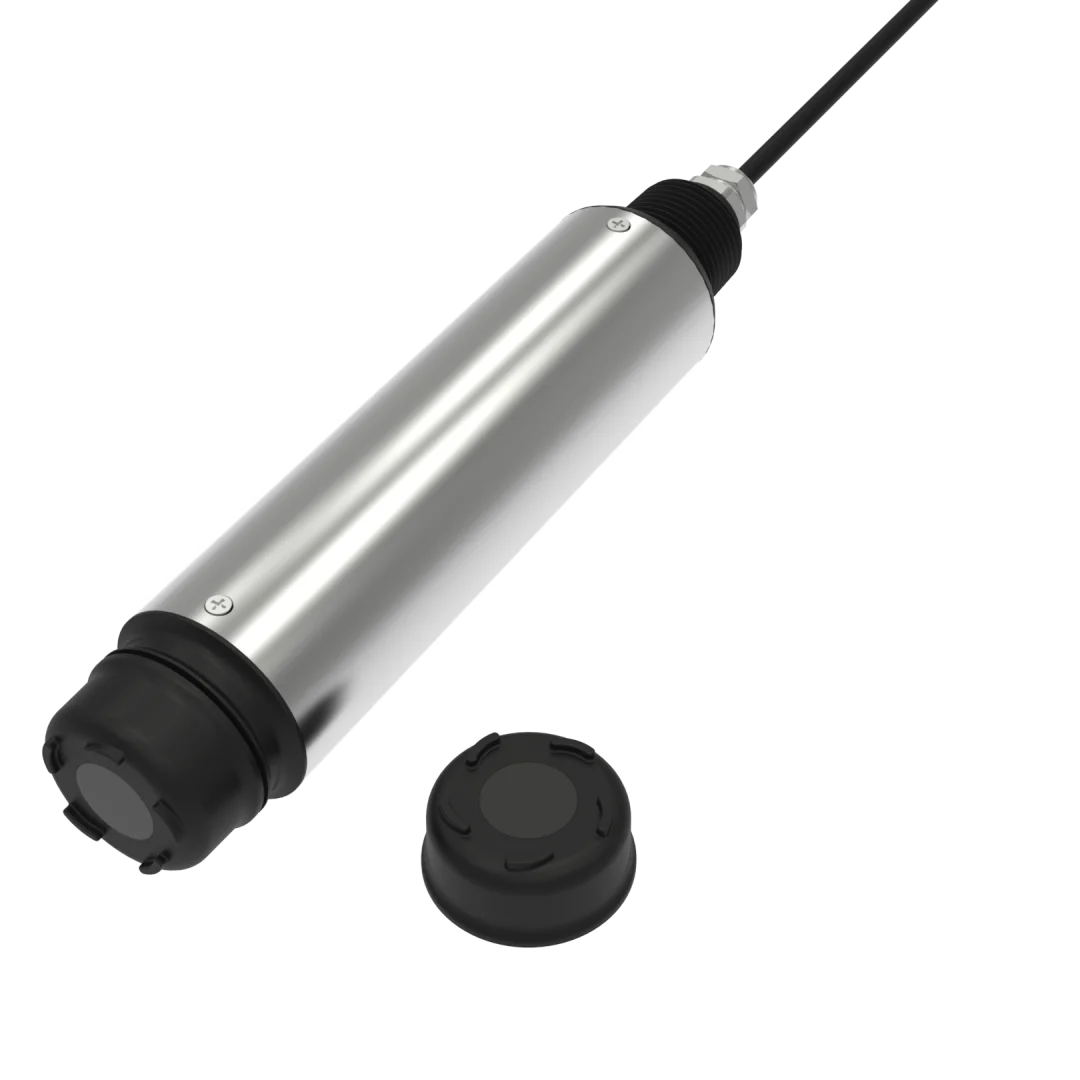

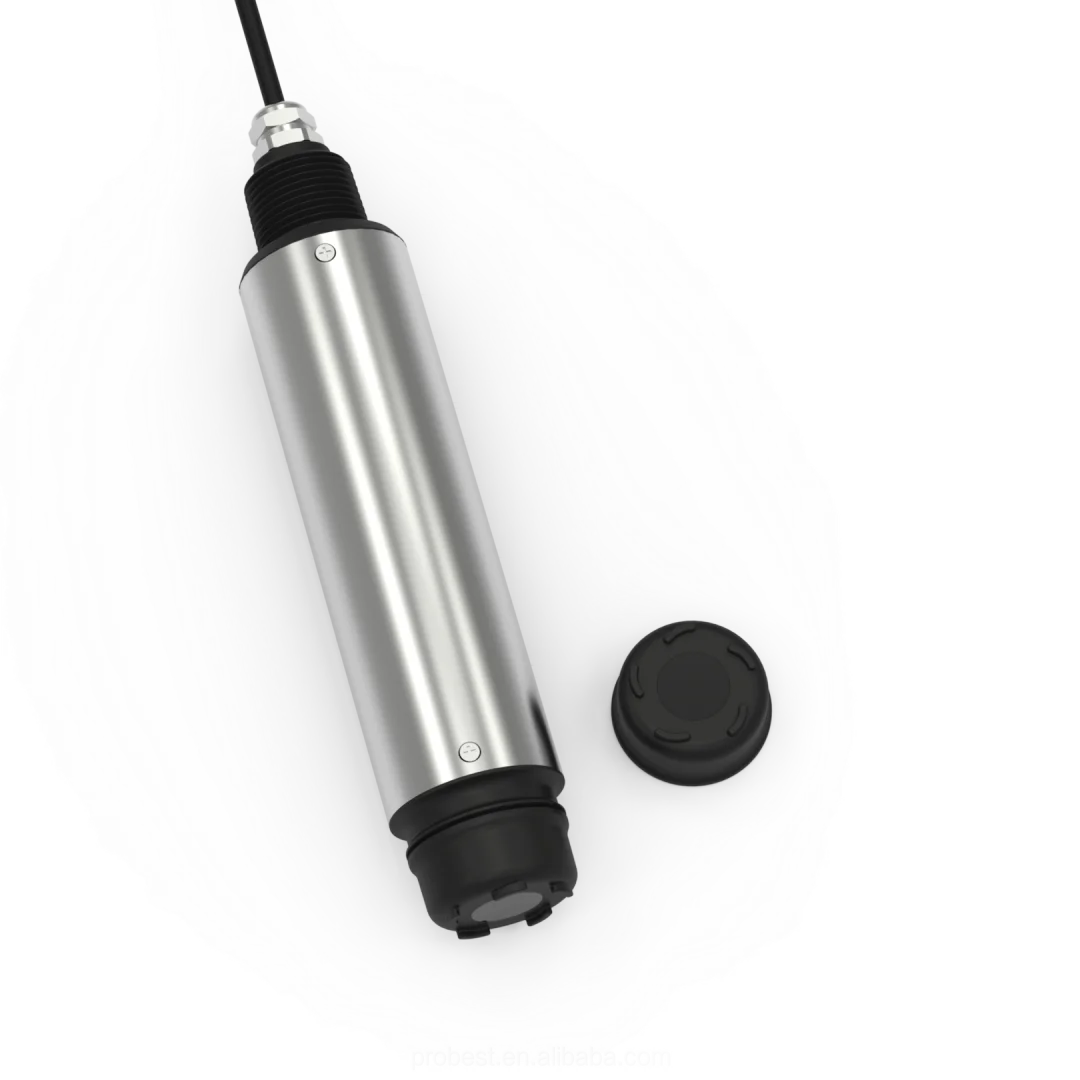

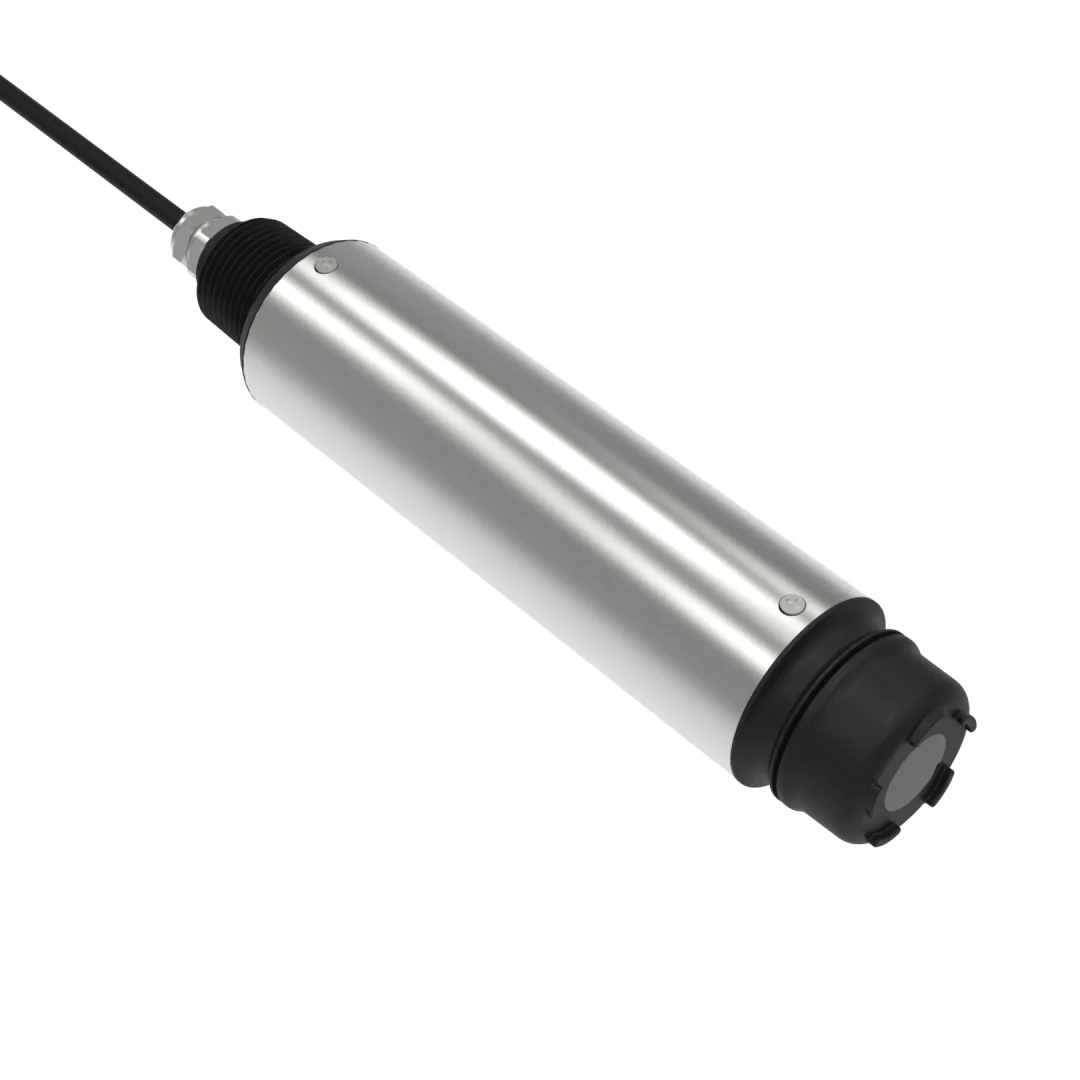

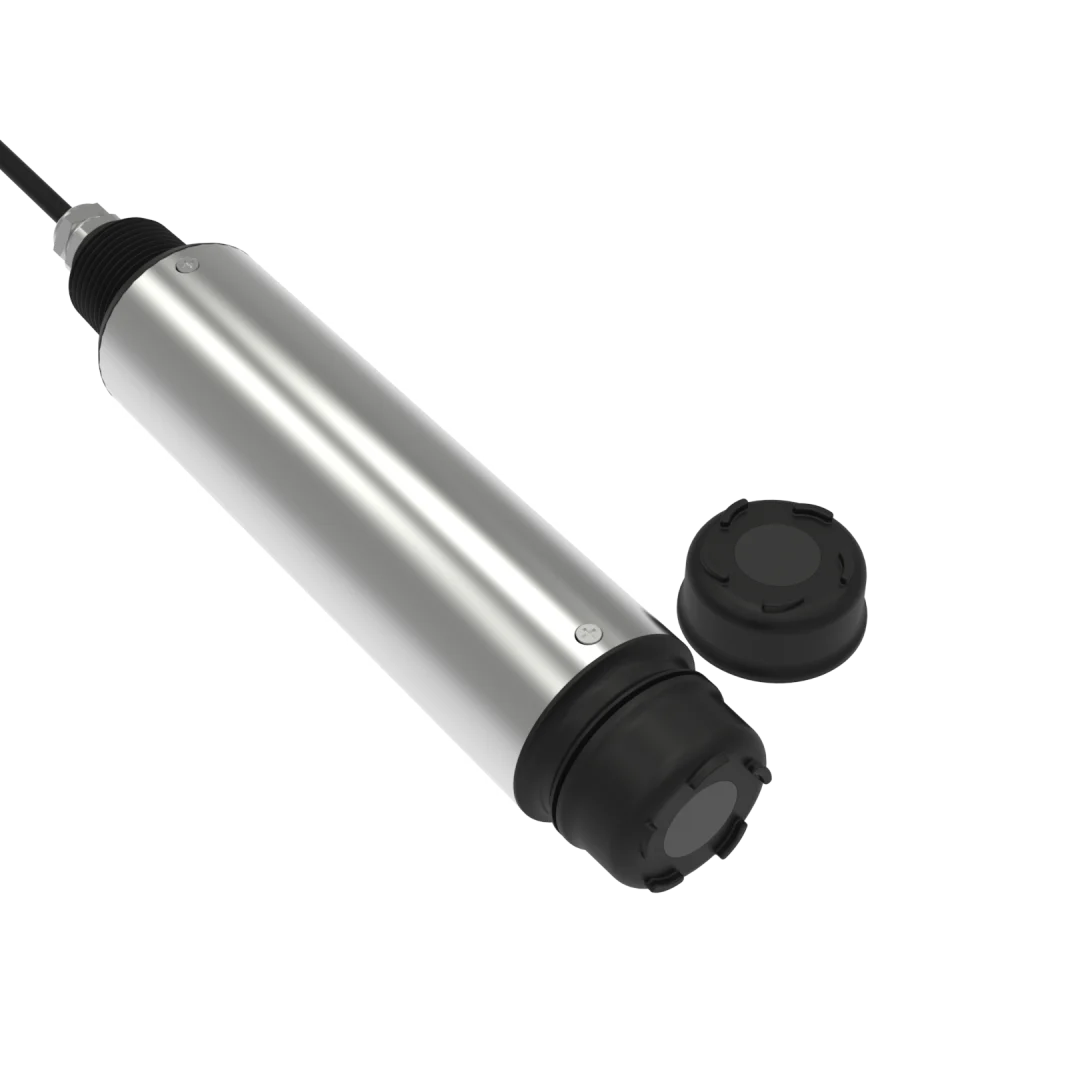

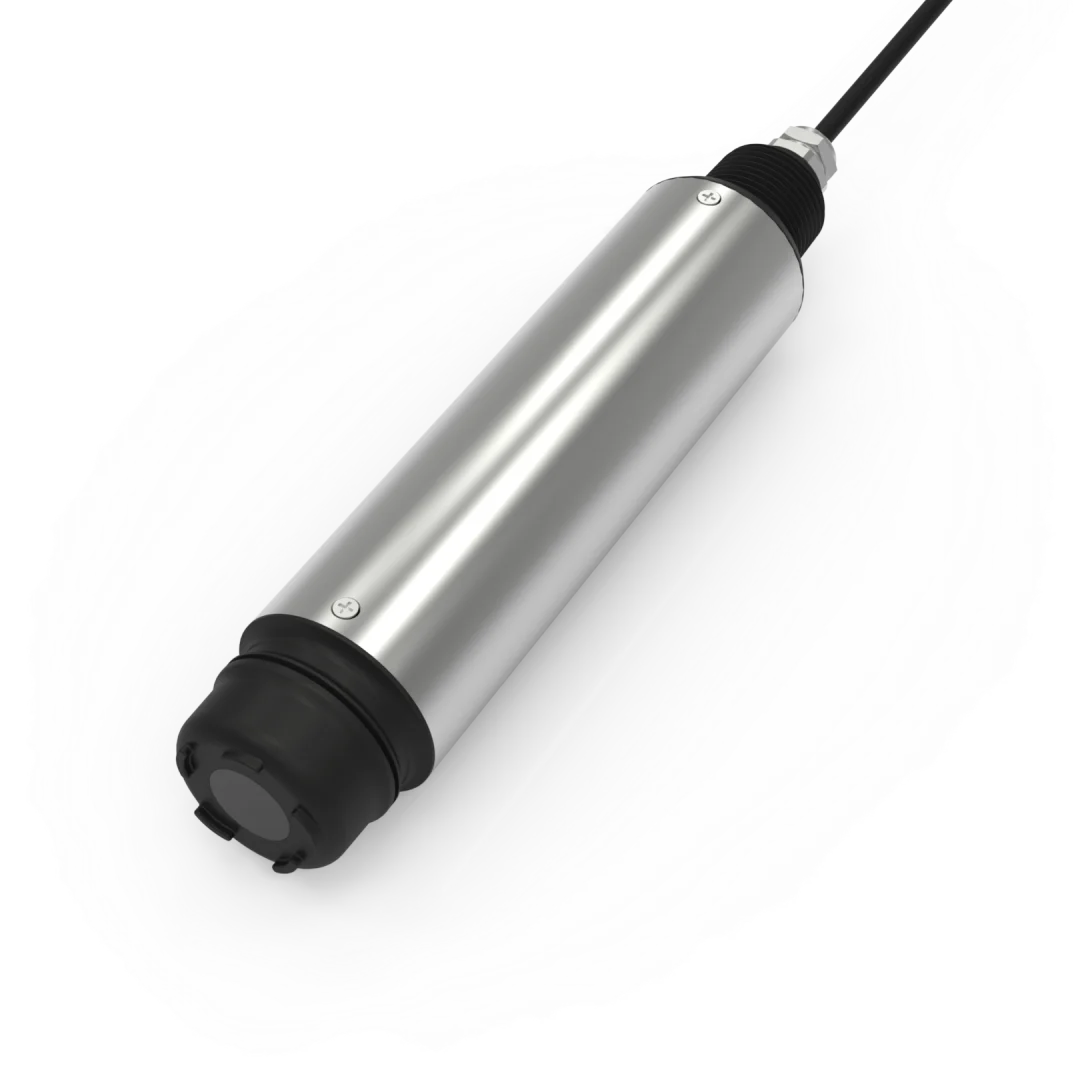

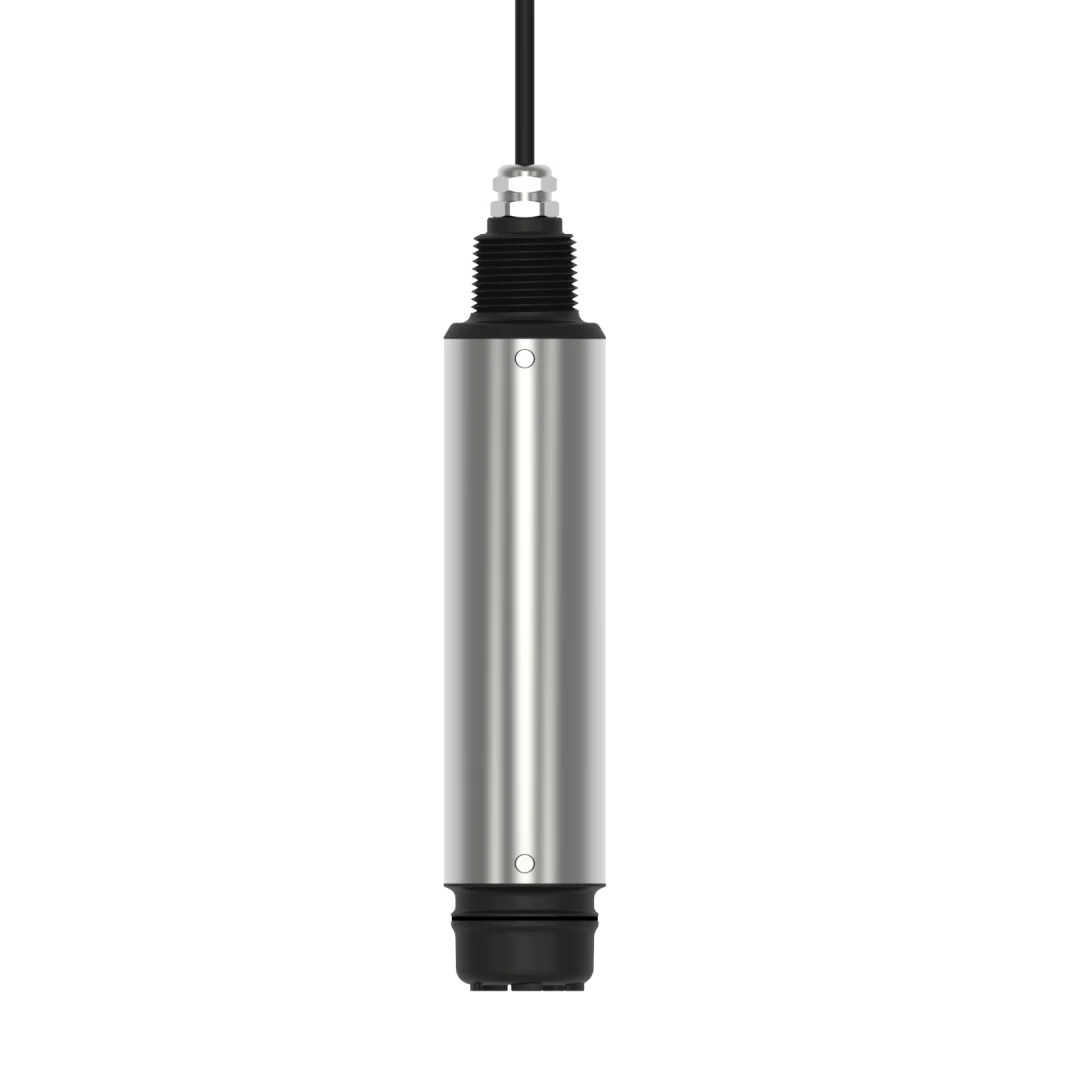

PFDO-700
PROBEST
90268090
Measurement Principle
PFDO-700 Dissolved Oxygen Sensor adopts fluorescence method to measure dissolved oxygen. The cap of the sensor is coated with a luminescent material. Blue light from an LED illuminates the luminescent chemical. The luminescent chemical instantly becomes excited and releases red light. The time and intensity of red light are inversely proportional to the concentration of oxygen molecules, So the concentration of oxygen molecules is calculated.
Features
The sensor adopts new type of oxygen sensitive membrane, with NTC temperature compensated function, whose measurement result has good repeatability and stability.
Won't produce oxygen consumption when measuring and no requirement of flow rate and stirring.
Breakthrough fluorescence technology, without membrane and the electrolyte and almost not need maintenance.
Built-in self-diagnosis function to ensure the accuracy of data.Plug-and-play sensor, quick and easy installation.
Factory calibration, not need calibration for a year and can carry out field calibration.
Digital sensor, high anti-jamming capacity and far transmission distance.
Standard digital signal output, can achieve integration and networking with other equipment without controller.
Applications
DO online monitoring of different technological processes such as regulating reservoir, biochemical pool and effluent of sewage treatment plant.
DO online monitoring of water plant, surface water, industrial process water and aquaculture and etc.
Technical Specifications
Measurement range | 0-20 mg/L or 0-200% saturation;Temperature:0-45℃ |
Measurement Accuracy | ±3% or ±0.3 mg/L, whichever is greater ; Temperature:±0.5℃ |
Resolution | 0.01mg/L |
Repeatability | ±0.3mg/L |
Pressure range | ≤0.3Mpa |
Calibration | Air automated calibration,sample calibration |
Main material | Body:SUS316L(fresh water),Titanium alloy(Ocean marine);Cover:PPS+ glass fiber;Cable:PUR |
Communication protocol | MODBUS RS485 |
Storage temperature | -15-60℃ |
Measuring temperature | 0-45℃(Non-freezing) |
Dimensions | Dia49.5mm*L 251.3mm |
Weight | 1.4KG |
Protective rate | IP68/NEMA6P |
Cable length | Standard:10m, the maximum may be extended to 100m |
Dimention:
Why Choose Us:
Probest is a professional ISO9001 certificated manufacturer with many patents specializing in researching, developing, producing of water analysis instruments (water test sensors probe,dissolved oxygen meter, ph sensor, do sensor, orp sensor, EC sensor, MLSS sensor, turbidity sensor, dissolved oxygen sensor, suspended solids sensor,sludge concentration sensors)
, including portable water analyzer, multi-parameter water quality analyzer, data acquisition and transmission terminal. The product can be applied to the fields of water quality monitoring of drinking water, waste water, surface water, aquaculture water, industrial process water, etc.
Probest is a reliable company including researcher, focusing on the development of sensor technology to make water analysis faster, simpler, greener and better.
Quality is our core advantages, providing stable and reliable water quality analysis.
