PWQ-2000 Cases Introduction of Pipe Network Water Quality Monitoring System

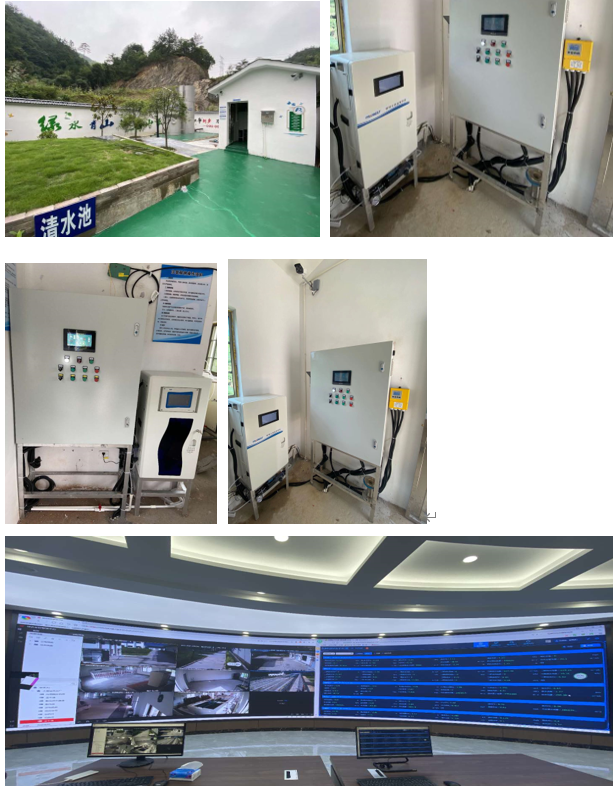

1、Zhejiang Yongkang City "Smart Water Affairs" Urban and Rural Water Supply Integrated Management and Control Project

• Yongkang City's "Smart Water Affairs" urban and rural water supply integrated management and control project, invested nearly 16 million yuan by the Municipal Water Investment Group, built 79 Village water supply stations and 6 large-scale water plants, the first "five water integration" in the province. Unified management mode. Real-time 24-hour remote real-time monitoring of water quality is achieved through "smart water affairs" equipment. The data transmission module is used to send remote data back to the platform. Real-time data such as PH, residual chlorine, turbidity, and real-time flow are clear at a glance. The pipeline network water quality monitoring system (PWQ-2000), which has the characteristics of integrated design, small footprint and high integration.

•

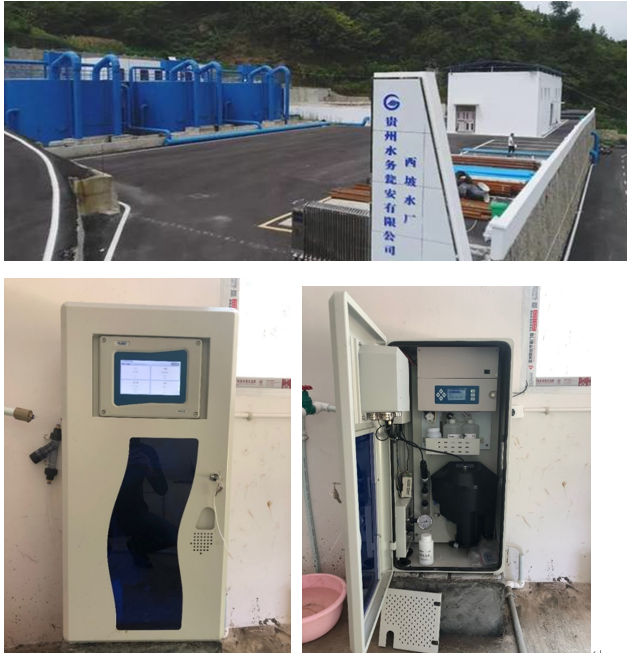

2、Guizhou Water Weng'an Co., Ltd. Xipo Water Plant

In order to monitor the water quality of Xipo Water Plant in real time and ensure the water quality of water supply, the online monitoring equipment of the water plant is selected from Pubes PWQ-2000 pipe network water quality monitoring system.

Since Weng'an County's "one city and four districts" water supply project has completed the construction of some reservoirs, water plants and water supply pipe networks, the water supply capacity of the county's urban areas has been significantly improved.

3、Guangdong Qingyuan Jiangnan Water Plant

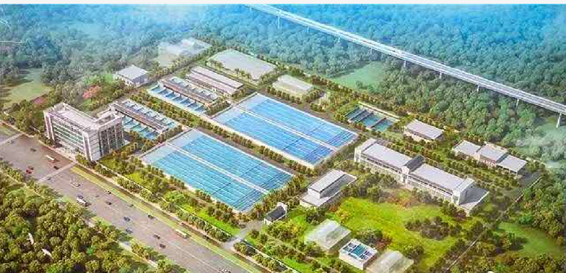

Qingyuan Jiangnan Water Plant is located in the K21 area of Zhouxin, west of Wuhan-Guangzhou high-speed railway. It is the largest water plant in northern Guangdong. The daily water supply capacity of the first phase can reach 400,000 tons, and the second phase is expected to complete a daily water supply of 800,000 tons. .

The water supply system has many features, such as greatly improved water sources, the highest and most advanced water effluent standards and processes in South China, and energy conservation and emission reduction. In order to speed up the improvement of the water supply facilities of the water plant and strengthen the safety management of the water plant, the Qingyuan Jiangnan Water Plant began to use the PWQ-2000 pipe network water quality monitoring system produced by Probest in 2020.

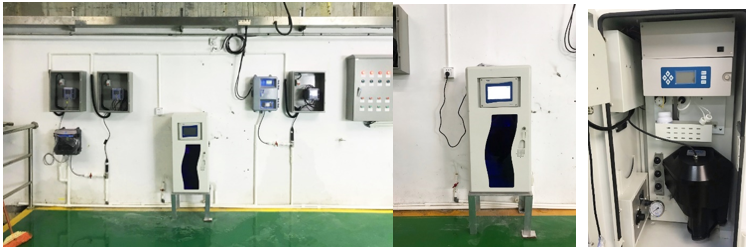

As shown in the figure below, the on-site installation of the equipment is very convenient. The user only needs to connect the power supply and the water inlet and outlet pipelines to complete the equipment installation. The overall internal wiring and waterway integration of the equipment are highly integrated.

Feedback from customers: The design of the instrument is reasonable, the operation is simple, the installation is convenient, and the maintenance is less during use. The test data is good and it is recommended to use.

4、Other cases

PWQ-2000 Performance table of pipe network water quality monitoring system
