PSS-600
PROBEST
90268090

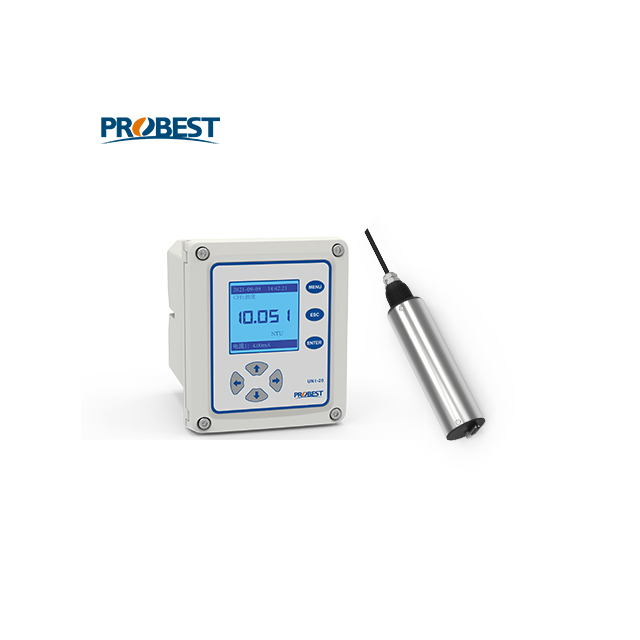

China Low Maintenance Suspended Solid Sensor Digital Water Quality Online Analyzer Sludge Concentration MLSS Water Monitoring
Measurement Principle

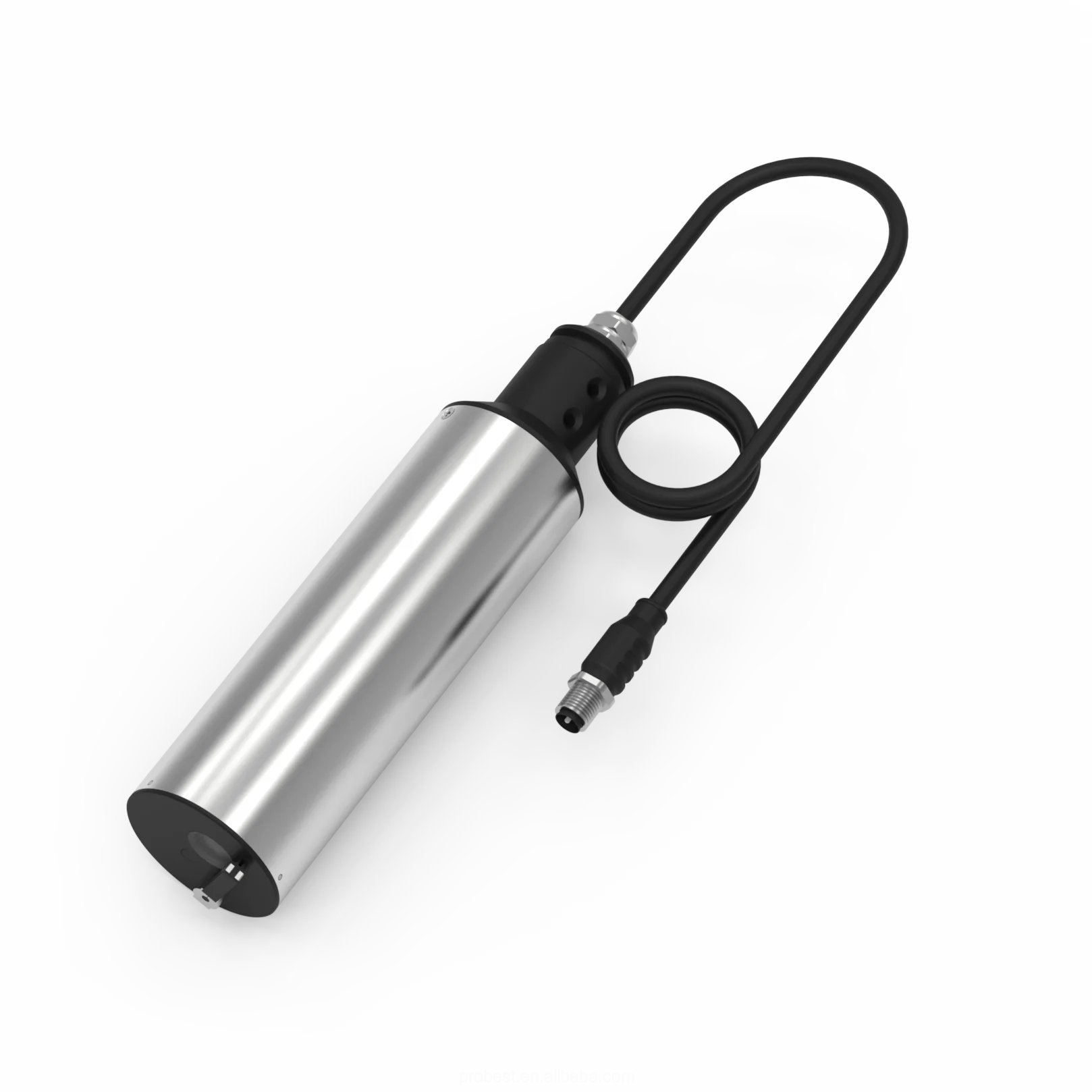

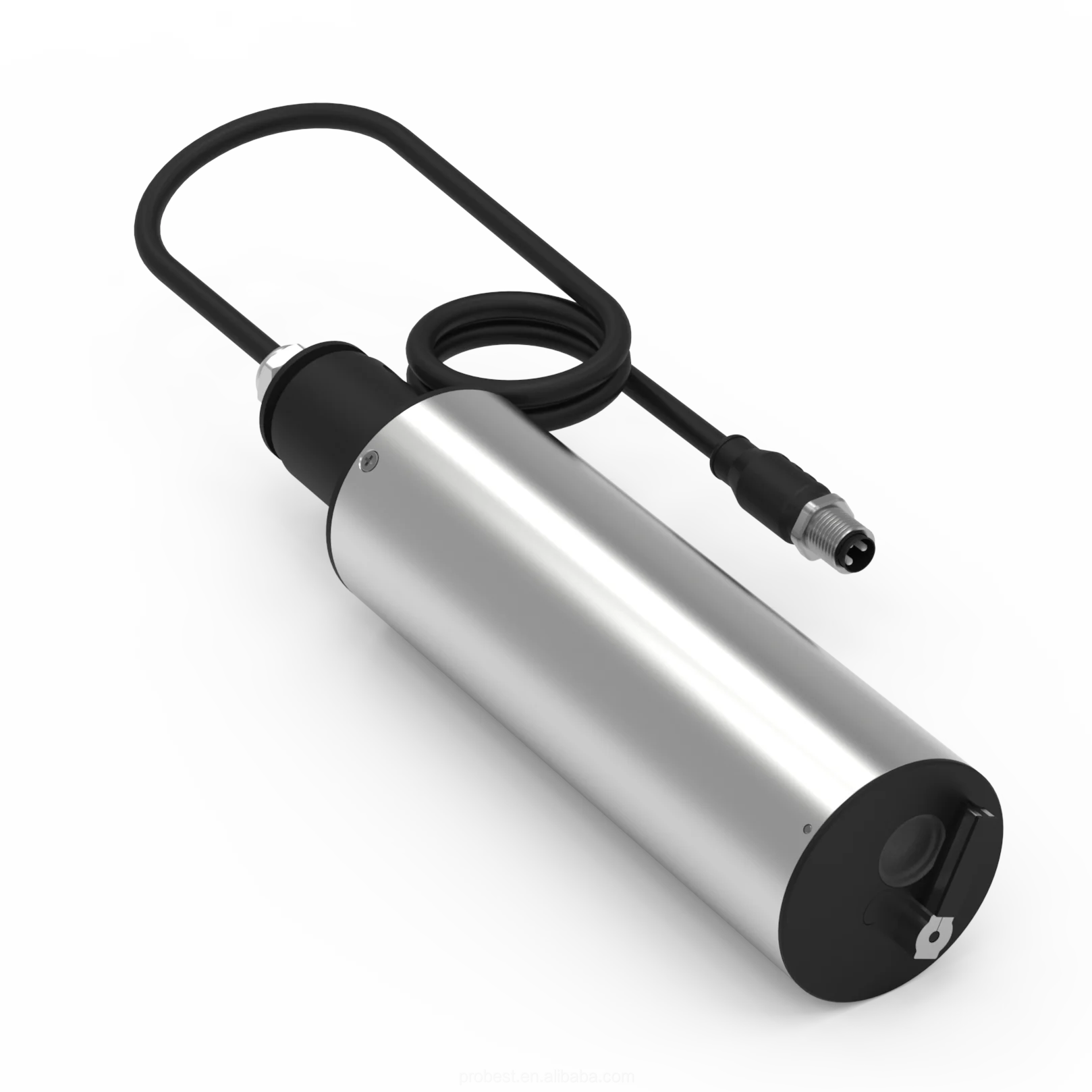

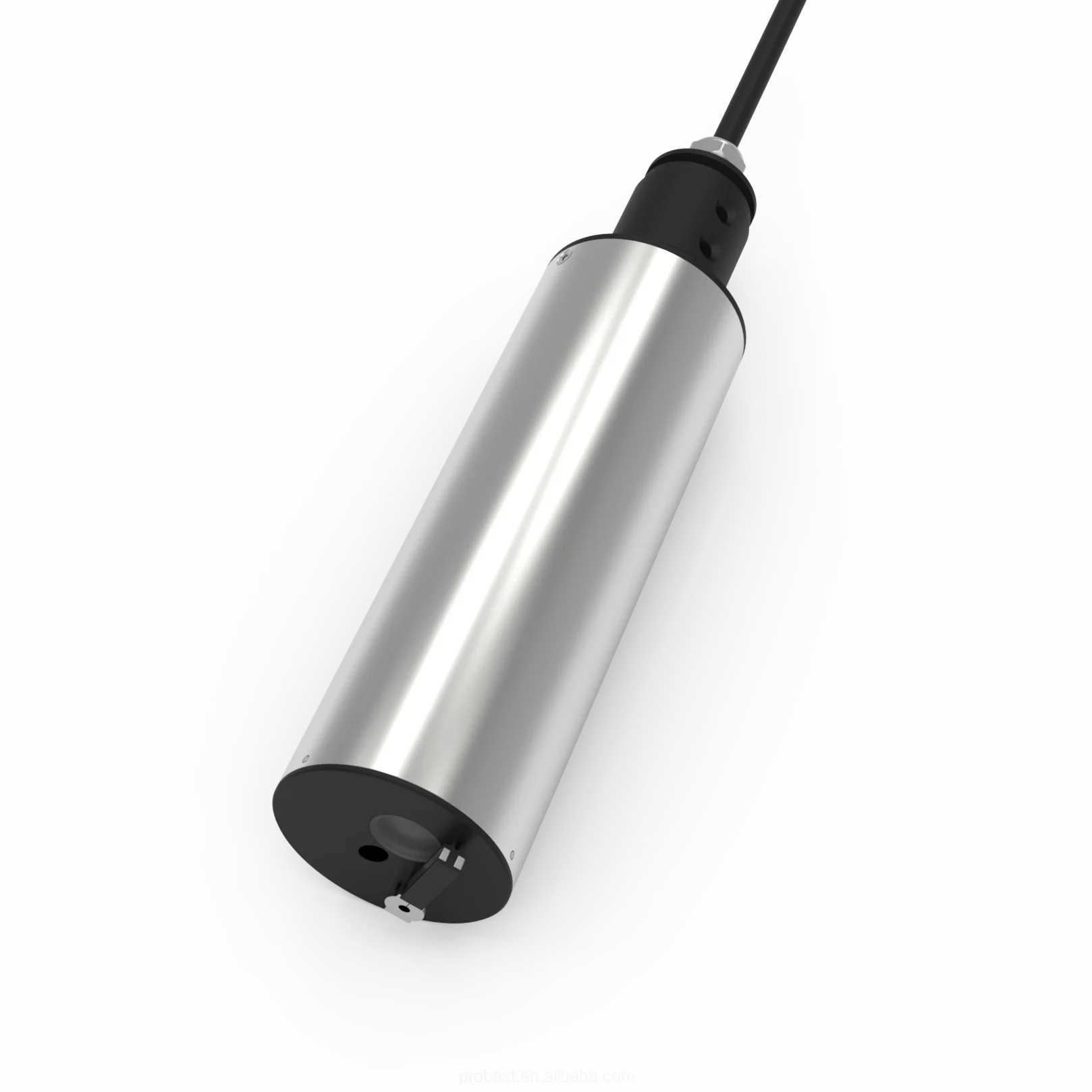

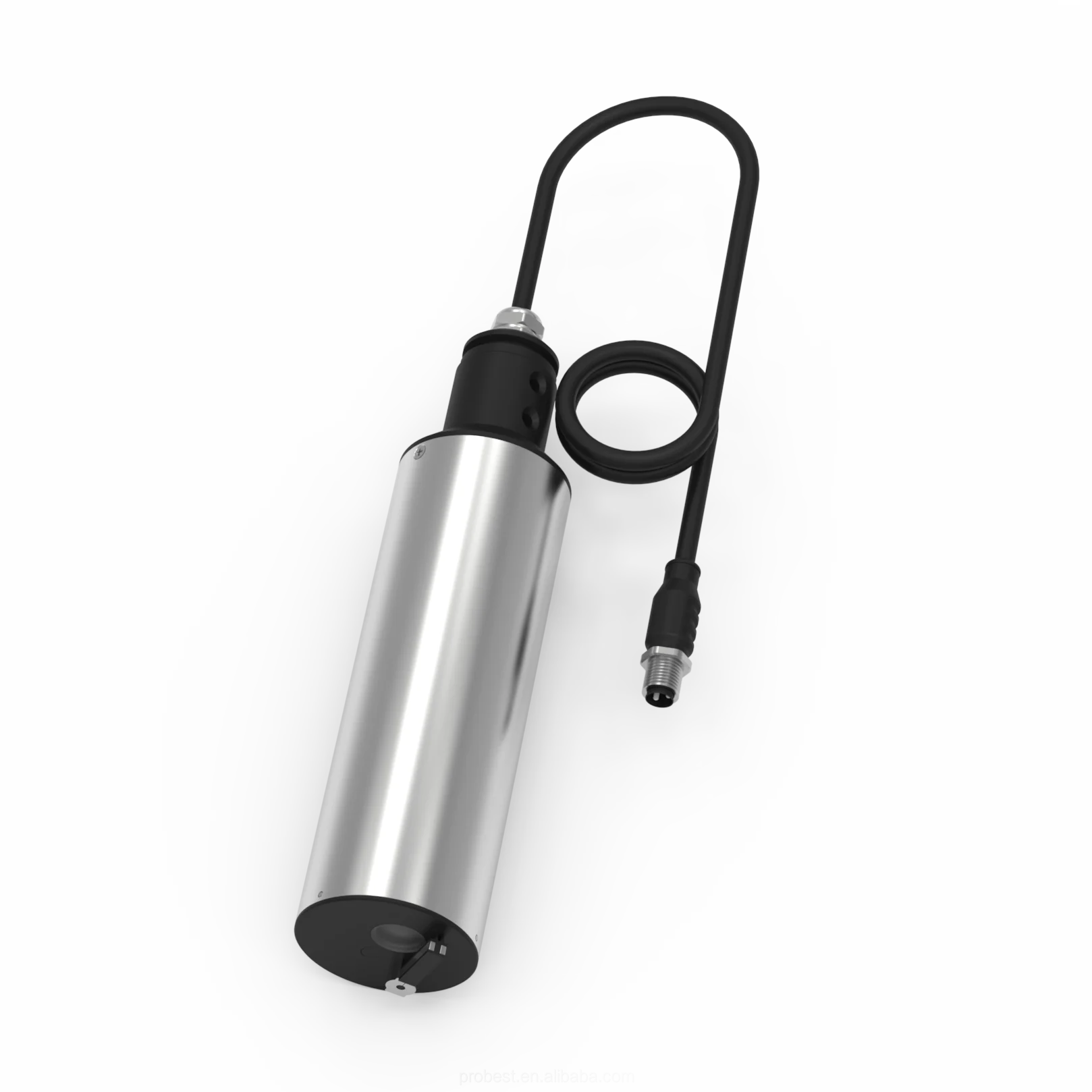

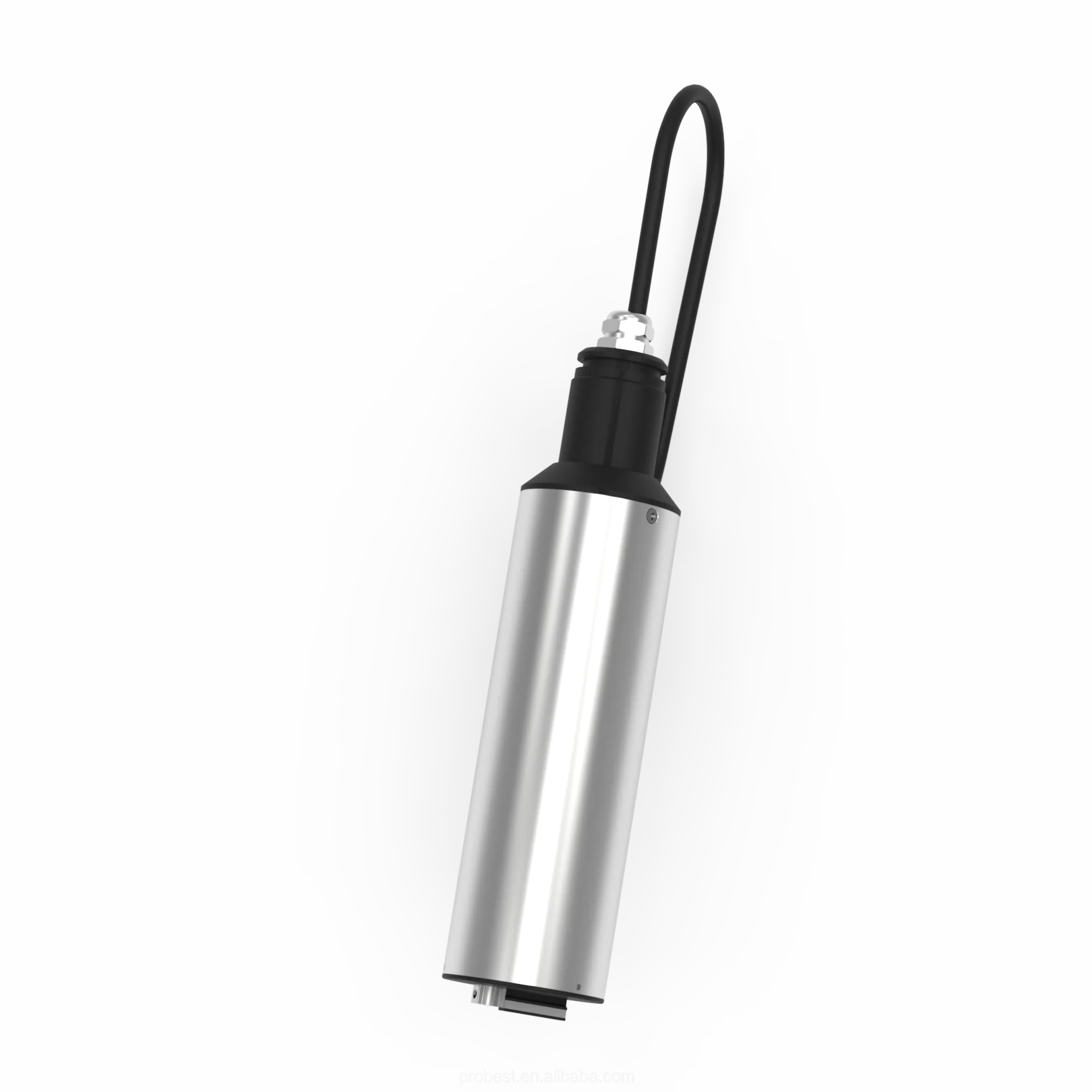

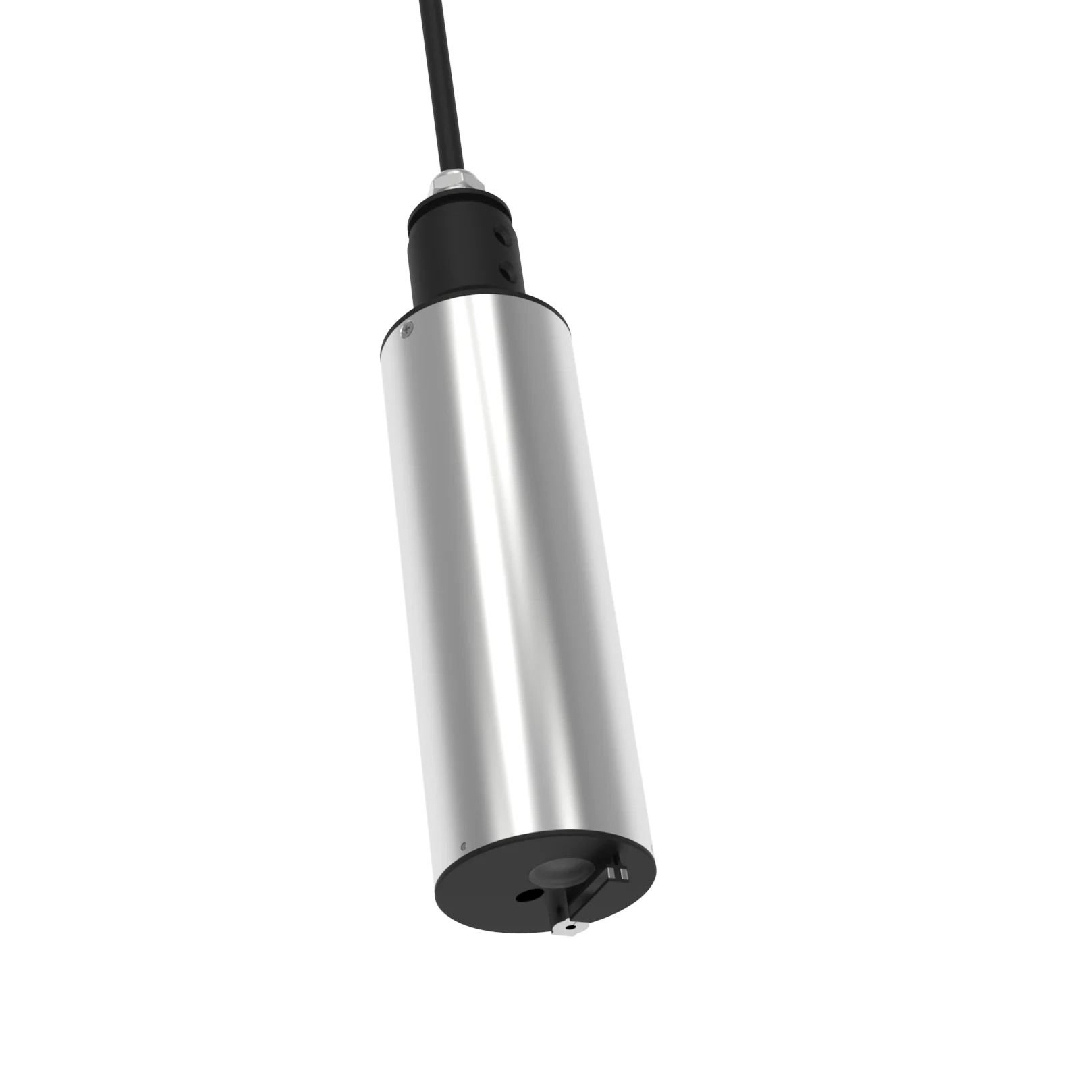

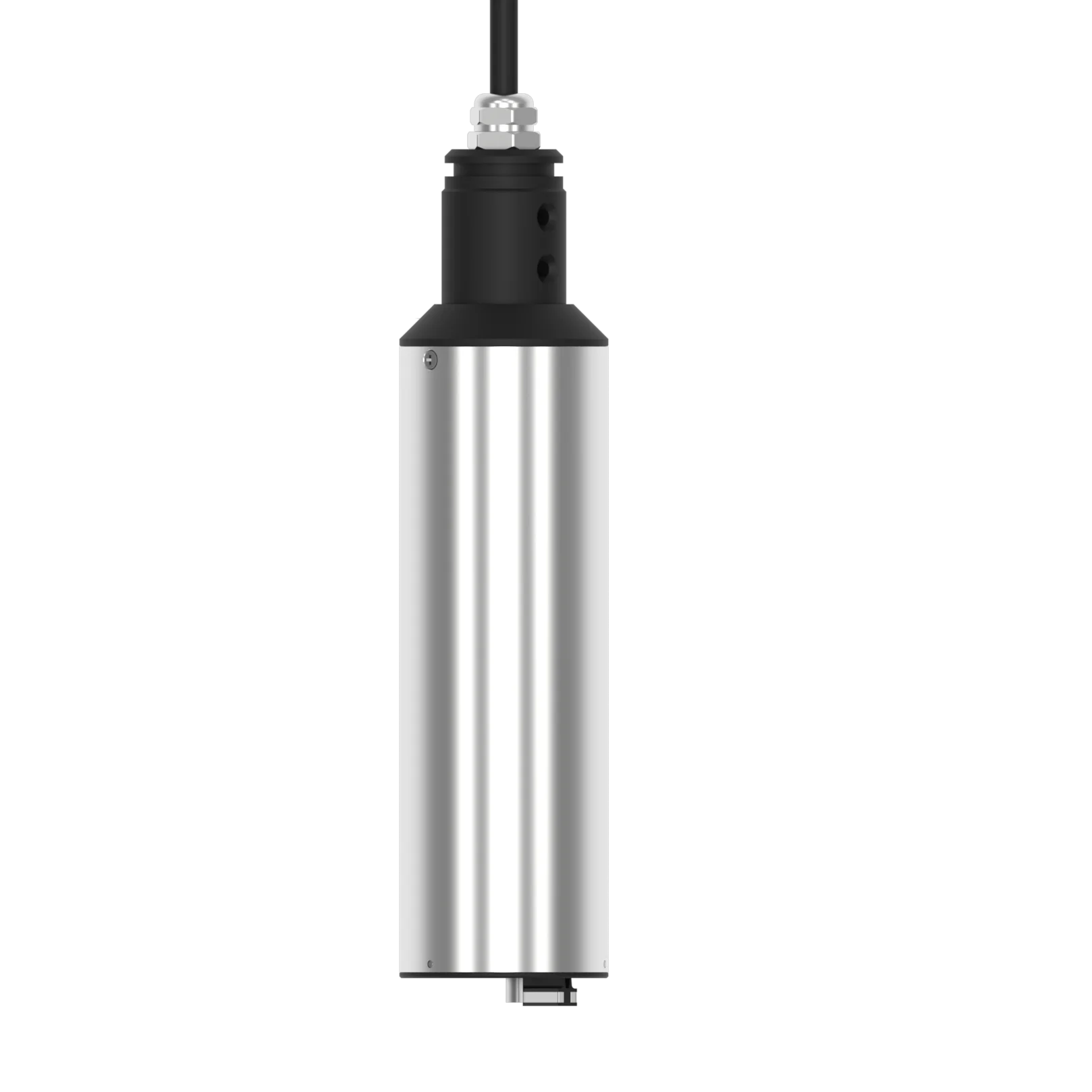

PSS-600 Sensor is based on the method of combination of infrared absorption scattered light.Infrared light which the photosource sends out scattered by suspended particles in the sample.And finally converted to electrical signals by photoelectric detector and getting the suspended solids concentration of the sample after treatment by analog and digital signals.
Features
² The sensor adopts the method of combination of infrared absorption scattered light.
² Optional cleaning brush of automatic cleaning function to reduce the maintenance of sensor.
² Digital sensor,high anti-jamming capacity and far distance transmission .
² Standard digital signal output,can achieve integration and networking with other equipment without controller.
² Plug-and-play sensors,quick and easy installation.
² Sensor power supply positive and negative reverse connection protection
² Sensor RS485 A/B terminal is connected to the power supply protection
² With time display, data storage and historical data viewing function;
² Optional data wireless transmission module.
Applications
² Sludge concentration of technological process of sewage treatment plant.
² Online monitoring of sewage plant outlets, municipal pipe network water quality, and pollution source discharge outlets
Technical Specifications
Measurement range | 0.01-1000mg/L,100-50000mg/L |
Measurement accuracy | <±10% of the measured value (depending on the homogeneity of the sludge) or 10 mg/L, bigger one |
Repeatability | ±3% |
Resolution | 0.01mg/L-1mg/L,base on range |
Pressure range | ≤0.4Mpa |
Calibration | Sample Calibration,Slope Calibration |
Main material | Body:SUS316L(fresh water);Cable:PUR |
Power supply | AC:85-500VAC;DC:9-36VDC |
Output | 3-way 4-20mA |
Relay | Three-way relays,programmed parameter & value response. |
Communication protocol | MODBUS RS485 |
Storage temperature | -15-50℃ |
Measuring temperature | 0-45℃(Non-freezing) |
Dimensions | Sensor:Dia 49mm*Length 230.5mm,Transmitter:145*125*162mm(L*W*H) |
Weight | Sensor:0.8KG;Transmitter:1.35KG |
Protective rate | Sensor:IP68/NEMA6P;Transmitter:IP66/ NEMA4X |
Cable length | Standard:10m,the maximum may be extended to 100m |
Features:
1. The sensor adopts new type of oxygen sensitive membrane,with NTC temperature compensated function,whose measurement result has good repeatability and stability.
2. Without oxygen consumption when measuring and no flow rate and stirring.
3. Breakthrough fluorescence technology,without membrane and the electrolyte and almost not need maintenance.
4. Built-in self-diagnosis function to ensure the accuracy of data.
5. Factory calibration,not need calibration for a year and can carry out field calibration.
6. Digital sensor,high anti-jamming capacity and far transmission distance.
7. Standard digital signal output,can achieve integration and networking with other equipment without controller.
8. Plug-and-play sensor,quick and easy installation.
Applications:
1.DO online monitoring of different technological processes such as regulating reservoir,biochemical pool and effluent of sewage treatment plant.
2. DO online monitoring of water plant,surface water,industrial process water and aquaculture and etc.
WHY CHOOSE US:
Probest is a professional ISO9001 certificated manufacturer with many patents specializing in researching, developing, producing of water analysis instruments, including portable water analyzer, multi-parameter water quality analyzer, data acquisition and transmission terminal. The product can be applied to the fields of water quality monitoring of drinking water, waste water, surface water, aquaculture water, industrial process water, etc.
Probest is a reliable company including 50+ researcher, focusing on the development of sensor technology to make water analysis faster, simpler, greener and better.
Quality is our core advantages, providing stable and reliable water quality analysis.
