PLTU-600
PROBEST
90268090

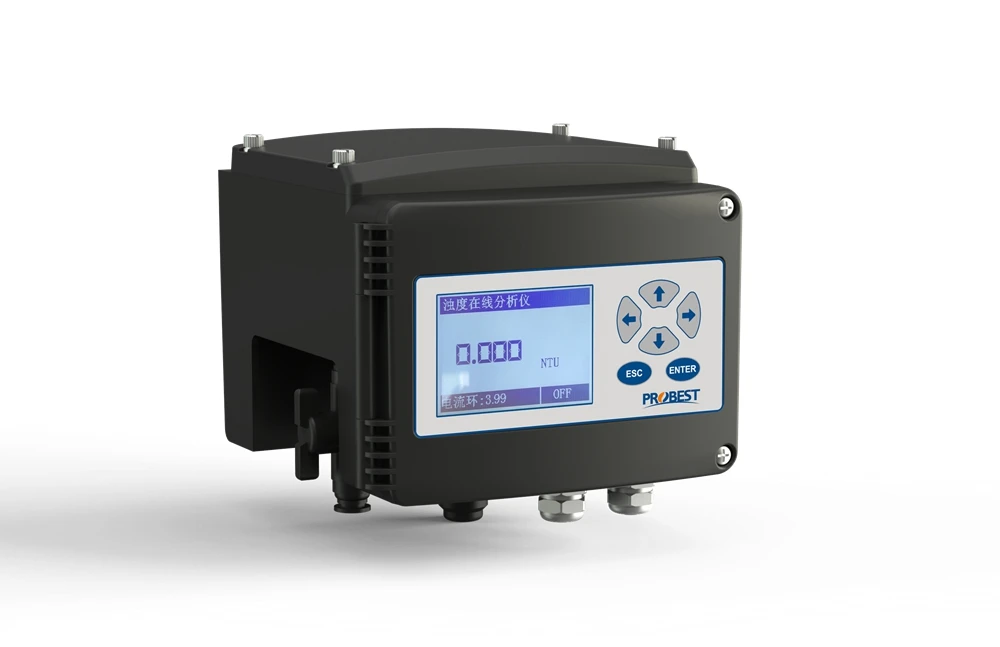

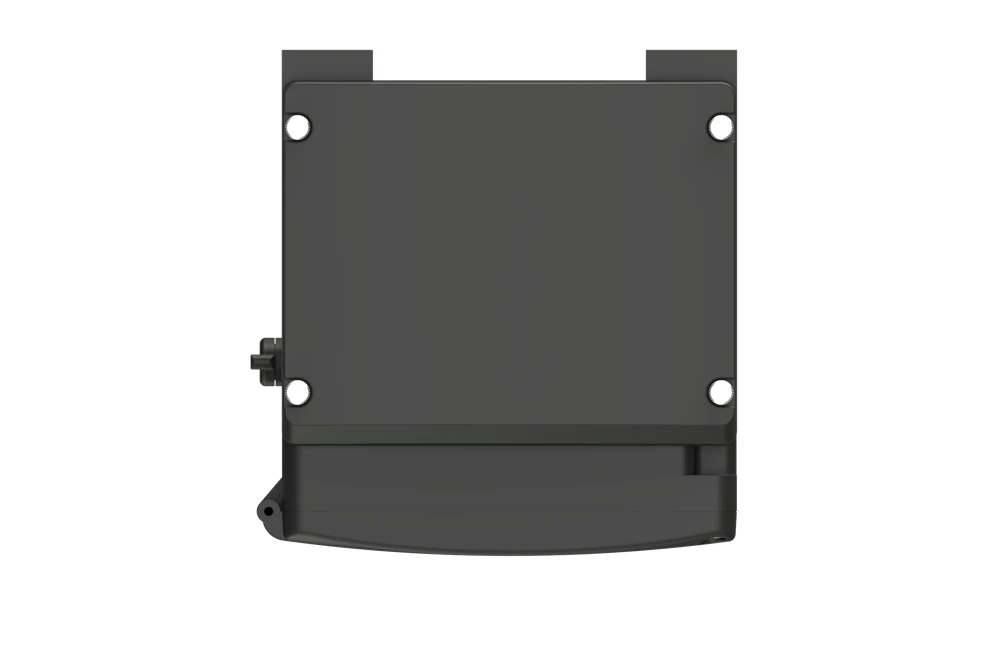

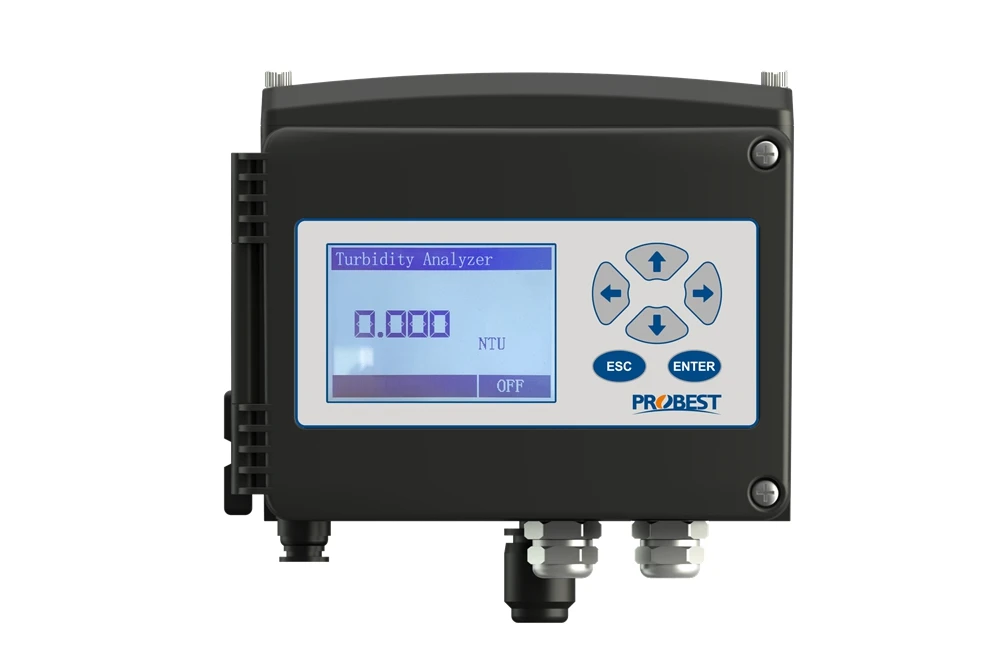

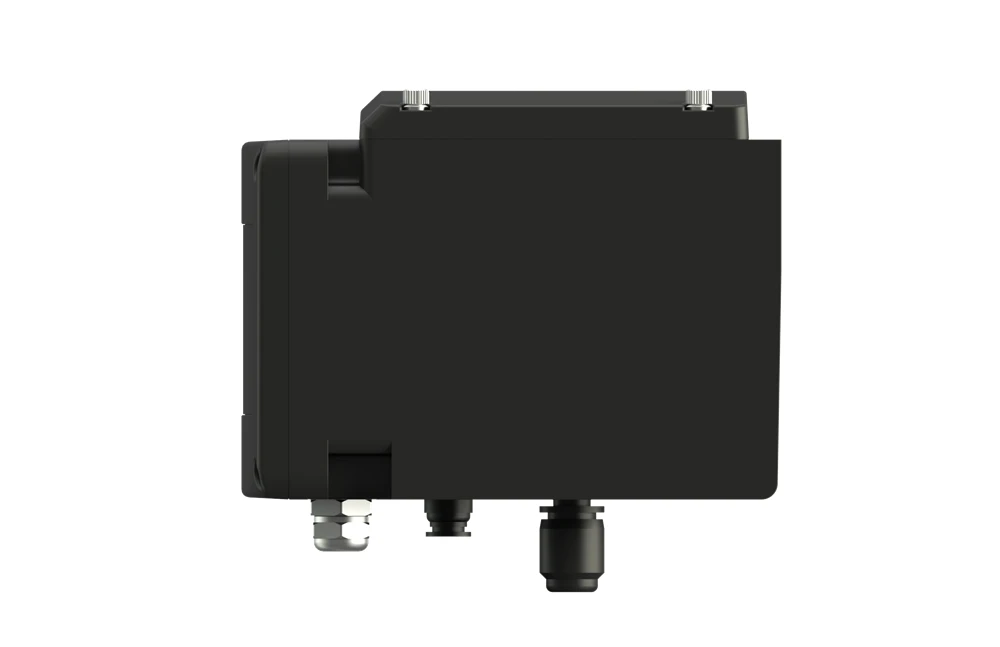

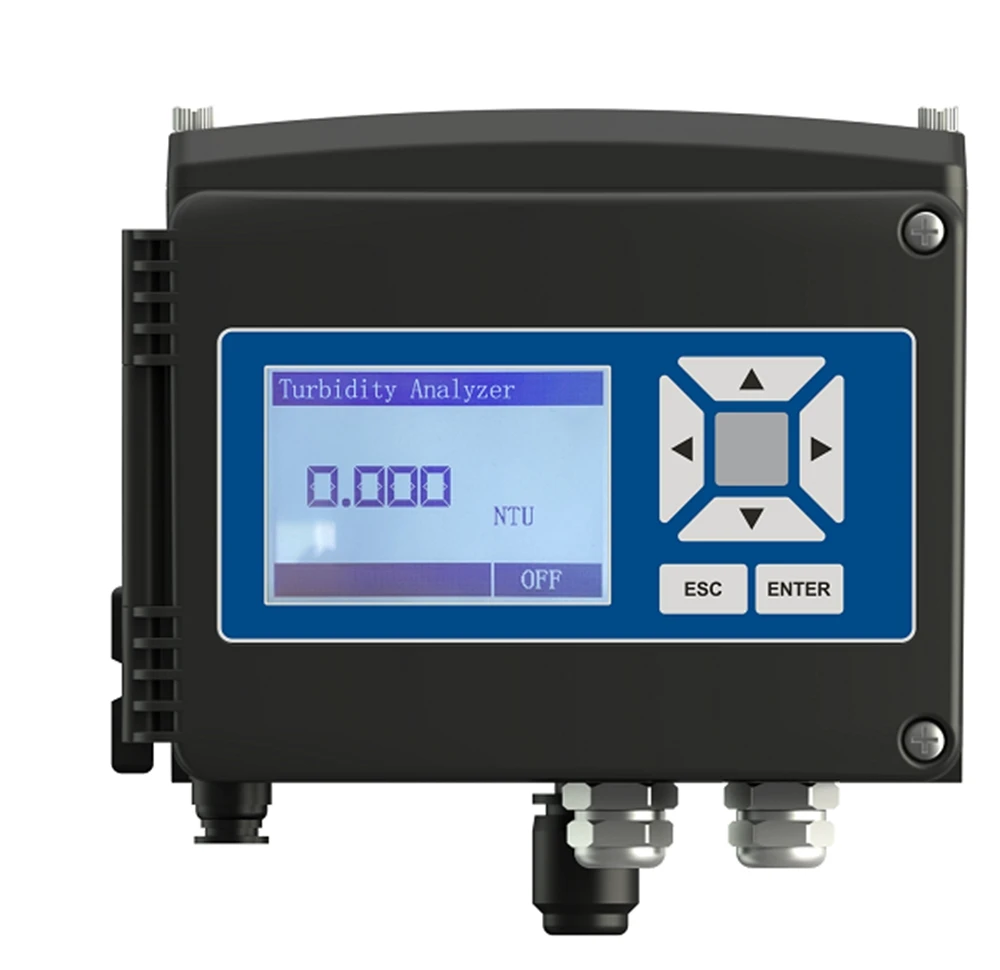

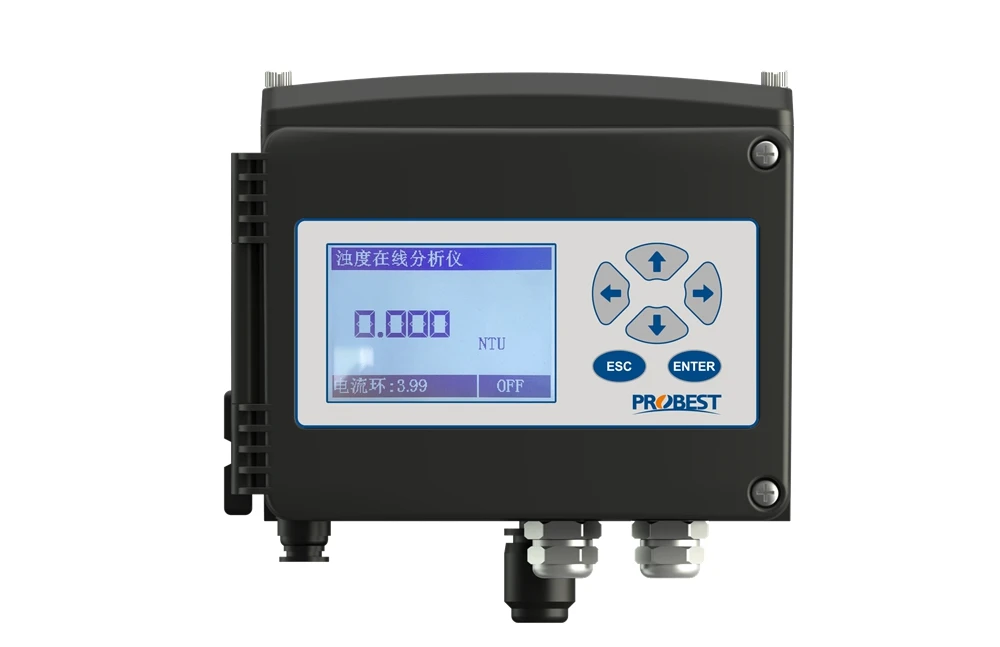

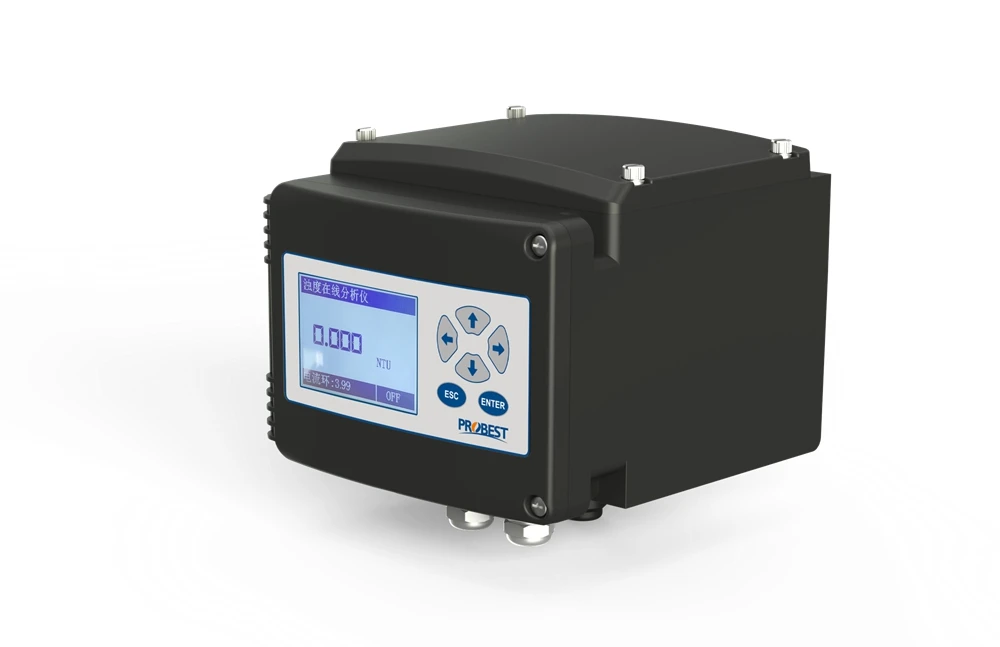

Probest PLTU-600 Turbidity Analyzer | EPA-Compliant for Direct Drinking Water Monitoring Manufacturer & Supplier
China Wholesale ISO Manufacturer PLTU-600 Compacted Online Low Range Turbidity Meter Analyser System for Tap Water
Probest PLTU-600 Turbidity Analyzer | EPA-Compliant for Direct Drinking Water Monitoring Instrument Features:
EPA principle 90 degree scattering method, specialized for low range turbidity monitoring;
Stable and reproducible data;
Simple cleaning and maintenance;
Power supply positive and negative reverse connection protection;
RS485 A/B terminal misconnection power protection.
Probest PLTU-600 Turbidity Analyzer | EPA-Compliant for Direct Drinking Water Monitoring Instrument Applications:
Turbidity online monitoring of tap water plant pre-filtration, post-filtration, factory water, direct drinking water system
Turbidity online monitoring of various industrial production circulating cooling water, filtered water, water reuse system, etc.
Online monitoring of turbidity in various industrial production circulating cooling water, filtered water, water reuse system and other links.
Probest PLTU-600 Turbidity Analyzer | EPA-Compliant for Direct Drinking Water Monitoring Instrument Specifications:：
Probest PLTU-600 Digital Low Range Turbidity Meter Online Analyzer Water Quality Monitor TU Testing Transmitter Instrument
| Model No. | PLTU-600 Low Range Turbidity Sensor and Transmitter |
| Measurement range | 0.001-100 NTU |
| Measurement Accuracy | ±2% of the measured value or ±0.015NTU (range: 0.001-40NTU),the bigger one. ±5% of the measured value (range: 40-100NTU),the bigger one. |
| Water flow | 200ml/min≤X≤400ml/min |
| Calibration | Sample calibration, Slope calibration |
| Pipe Fitting | Inlet:1/4NPT; Outlet:1/2NPT |
| Sensor Main material | Body: ASA, Cable:PUR |
| Power supply | Sensor 9-36VDC / Standard with 220VAC to 12VDC power converter |
| Output | 1-way 4-20mA |
| Relay | 1-way relay |
| Communication protocol | MODBUS RS485 |
| Storage temperature | -15-60℃ |
| Measuring temperature | 0-45℃, non-freezing |
| Dimension | Sensor:158*166.2*155mm(L*W*H), Transmitter:145*125*162mm(L*W*H) |
| Weight | Sensor:1KG, Transmitter:1.35KG |
| Protective rate | Sensor:IP65(indoor),Transmitter:IP66/ NEMA4X |
| Cable length | Standard: 3m, could be extended (LED:30M, Tungsten lamp: 7M) |
| Protection Rate | IP65(INDOOR) |
Measurement Principle:
Incident light of PLTU-700 Low-Range Sensor is produced by the tungsten light whose color temperature’s absolute temperature is between 2200 degrees to 3000 degrees.Guiding the parallel light assembled by the tungsten light down into the water sample of the sensor,the light is scattered by suspended particles in water samples,and the scattered light that is with a ninety degree angle to the angle of incidence is received by the silicon photocell receiver in the water sample,measuring the turbidity by calculating the relationship with 90-degree scattered light and the incident beam.
Features:
1. A scattering turbidity meter with continuous readings, designed for low-range turbidity monitoring.
2. Stable data and good repeatability.
3. Easy clean and maintenance.
4. Plug-and-play sensors,quick and easy installation.
Applications:
1. Turbidity online monitoring of water inlet, settling basin of water plant.
2. Turbidity online monitoring of sewage plant,industrial process water and waste water treatment.
WHY CHOOSE US:
Probest is a professional ISO9001 certificated manufacturer with many patents specializing in researching, developing, producing of water analysis instruments, including portable water analyzer, multi-parameter water quality analyzer, data acquisition and transmission terminal. The product can be applied to the fields of water quality monitoring of drinking water, waste water, surface water, aquaculture water, industrial process water, etc.
Probest is a reliable company including 30+ researcher, focusing on the development of sensor technology to make water analysis faster, simpler, greener and better.
Quality is our core advantages, providing stable and reliable water quality analysis.
