PUVNO3-900
PROBEST
90268090
n Measurement Principle

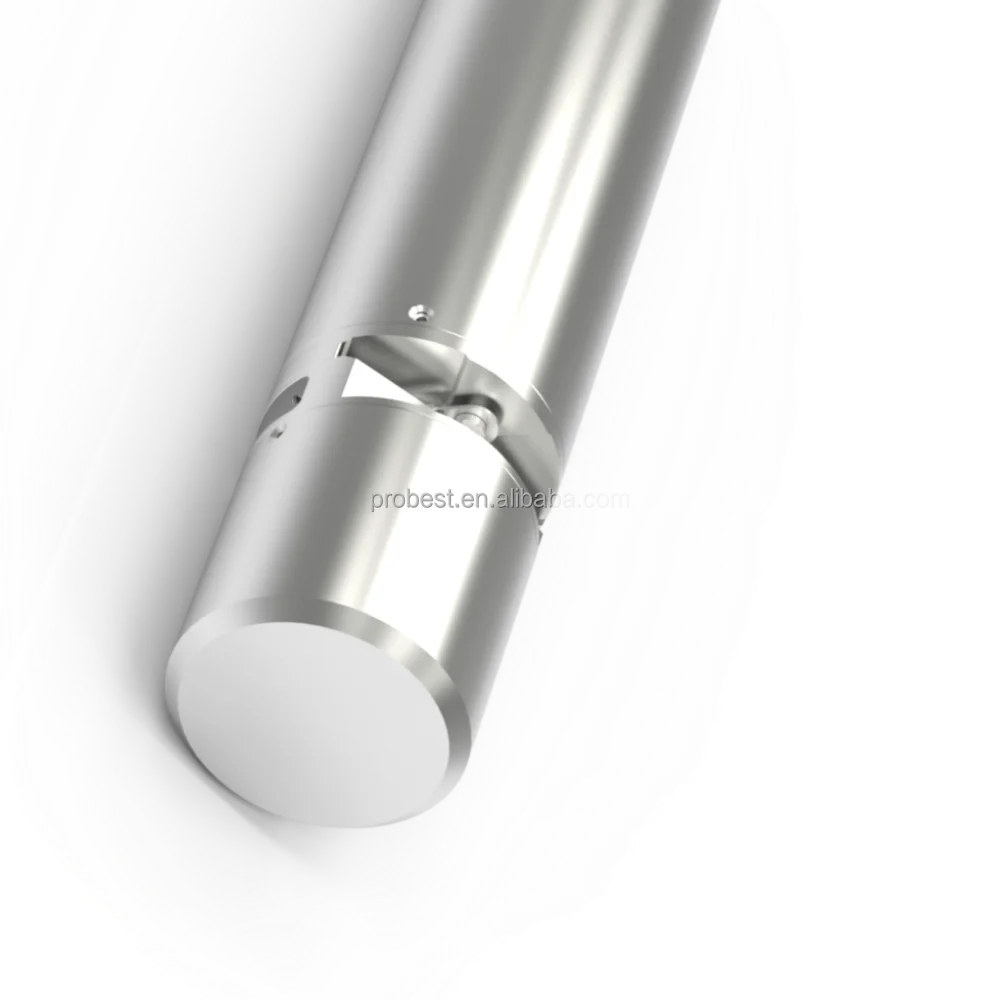

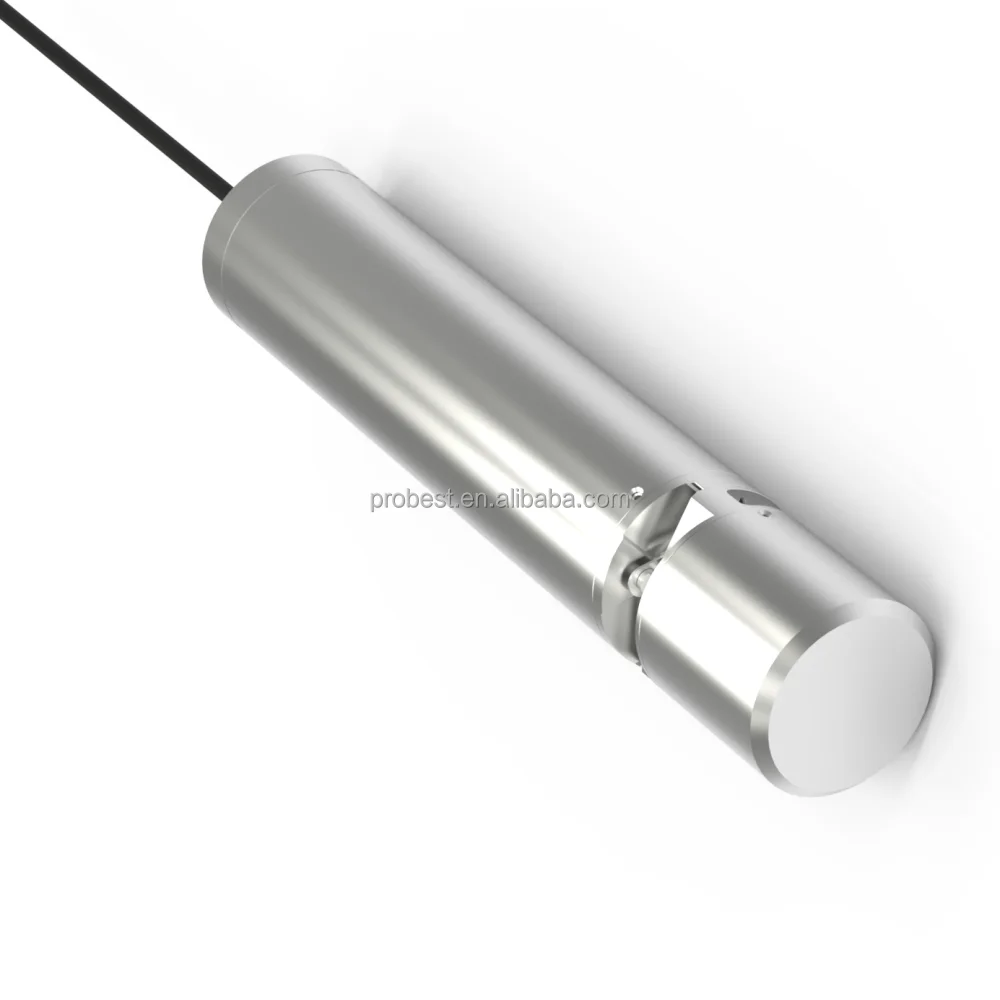

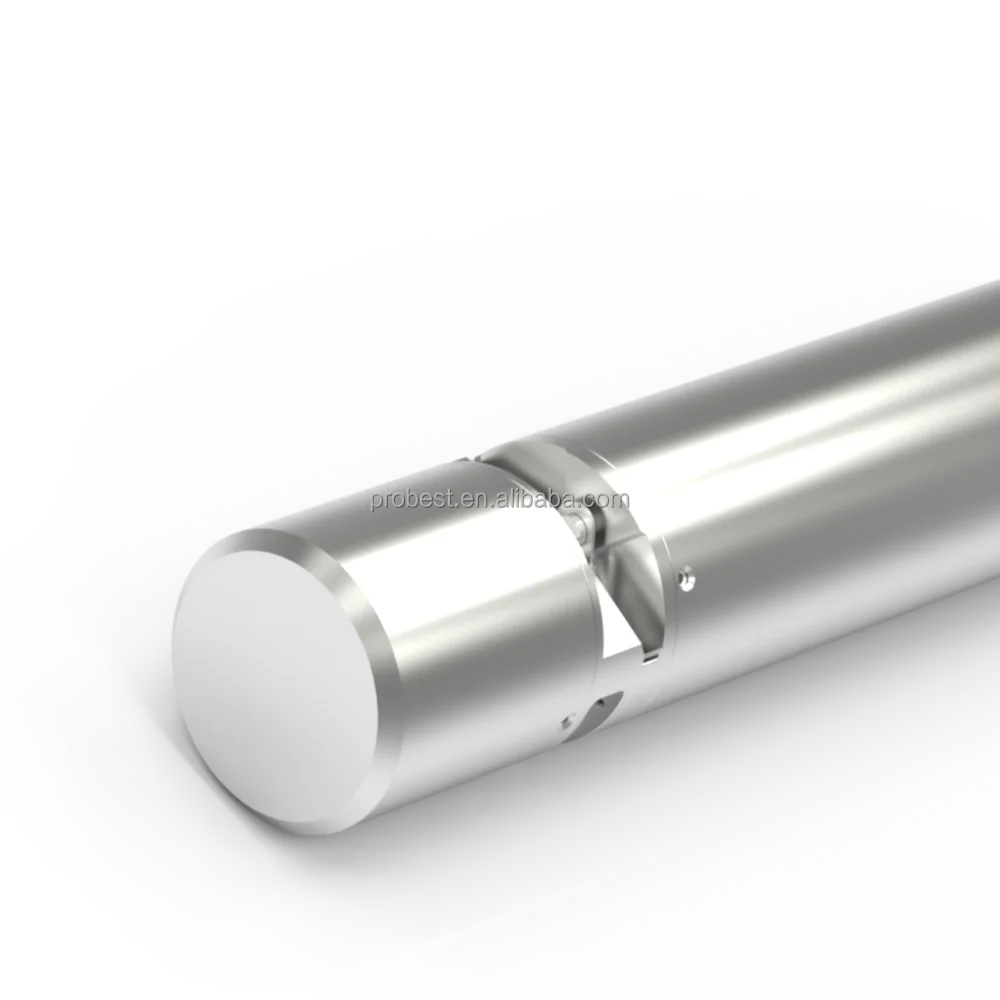

NO3 absorbs at 210 nm UV light. When the Spectrometer NO3 probe is working, the water sample flows through the slit. When the light from the light source in the probe passes through the slit, part of the light is absorbed by the sample flowing in the slit, and the other light passes through the sample and reaches the other side of the probe. Calculate the concentration of nitrate.
n Features
u Spectrometer NO3 Probe direct immersion measurement without sampling and pre-processing;
u No chemical reagents, no secondary pollution;
u Short response time enables continuous measurement;
u The sensor has an automatic cleaning function that reduces maintenance.
u Sensor power supply positive and negative reverse connection protection
u Sensor RS485 A/B terminal is connected to the power supply protection
u Wireless data transmission module for optional
n Applications
u Drinking water / surface water / industrial production process water / sewage treatment, etc.,
u Continuously monitor the concentration of nitrate dissolved in water, especially for monitoring sewage aeration tanks, controlling denitrification process
n Technical Specifications
Measuring Range | 0.1～40.0mg/L ( 2mm ) |
Accuracy | ±5% |
Repeatability | ± 2% |
Resolution | 0.01 mg/L |
Pressure range | ≤0.4Mpa |
Sensor material | Body：SUS316L（fresh water），Titanium alloy（Ocean marine）；Cable：PUR |
Calibration | Standard calibration |
Power Supply | AC：85-500VAC (50/60HZ) DC：9~36VDC |
Output | 3-way 4-20mA |
Relay | Three-way relays, programmed response parameter and response value. |
Communication protocol | MODBUS RS485 |
Storage temperature | -15-50℃ |
Measuring temperature | 0-45℃（Non-freezing） |
Dimensions | Sensor：Diam69mm*Length 380mm |
Weight | Sensor：3.2KG；Transmitter：1.35KG |
Protective rate | Sensor：IP68/NEMA6P；Transmitter：IP65/ NEMA4X |
Cable length | Standard:10M,the maximum may be extended to 100m |
Suggested Backup spare parts | PGP-UVNO3 : UVNO3 Sensor Scraper |
