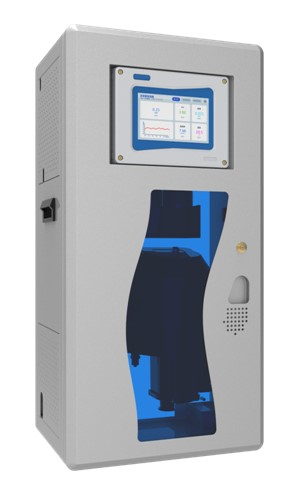

PWQ-2000
PROBEST
Features
l Integrated design, save space
l The internal wiring and waterway are highly integrated, and users only need to connect the power supply and enter and exit the water.
l The internal waterway design can try to ensure that the water flow is stable during the internal measurement process of the equipment, and ensure the monitoring data is accurate;
l DPD colorimetric analyzer, with automatic cleaning function, reducing maintenance
l With 7-inch color touch screen, the operation interface is simple, easy operation, reliable system, low maintenance
l With data storage and curve display functions, master the dynamic changes of water quality;
l With automatic fault diagnosis function, abnormal information recording and uploading functions, such as parts failure, over-range alarm, over-standard alarm and other information;
l With three-level management authority;
l Historical data download and curve display can intuitively and accurately understand and track the changes of water parameters within a certain period;
l Optional wireless data transmission module.
l Applications
l Water quality monitoring of waterworks and water supply network
l Detection of water quality standards for secondary water supply in the community
l Real-time water quality monitoring of swimming pool, SPA, etc.
l Rural tap water quality monitoring
l Specifications
Display | 7inch LED touch screen, can operate in direct sunlight |
Power | 220VAC,50Hz/60 Hz |
Output | 8 way 4-20mA analog output. Program setting response parameters and response values |
Relay | Four relays, program setting response parameters and response values |
Communication Protocol | Standard MODBUS RS485 communication function, real-time transmission of measured values. Optional wireless communication method: 4G: UDP / TCP NB: UDP |
Storage Temp. | 0～60℃ |
Operation Temp. | 0~45℃ (non-frozen) |
Protection Level | IP54 |
Size | 340×450×900mm (L × W × H) |
Monitoring parameter index
Residual chlorine / total chlorine | Principle | DPD Standard colorimetry |
Range | 0-5ppm | |
Resolution | 0.01ppm | |
Accuracy | ±5% reading or ± 0.03ppmCl2, whichever is greater | |
Carbon dioxide | Principle | DPD Standard colorimetry |
Range | 0-5ppm | |
Resolution | 0.01ppm | |
Accuracy | ±5% reading or ± 0.05ppm ClO2, whichever is greater | |
pH | Principle | Glass electrode method |
Range | 0-14 pH | |
Resolution | 0.01 pH | |
Accuracy | ±0.1 pH | |
ORP | Principle | Glass electrode method |
Range | -2000mV~2000mV | |
Resolution | 1mV | |
Accuracy | ±5mV | |
Conductivity | Principle | Conductivity cell method |
Range | 10us/cm-5000 us/cm（K=1） | |
Resolution | 0.1uS/cm~0.01mS/cm（Depends on range） | |
Accuracy | ±1% or 1 us/cm，greater one | |
Turbidity | Principle | Light scattering |
Range | 0-100NTU | |
Resolution | 0.001~0.1NTU（Depends on range） | |
Accuracy | 0.001-40NTU: reading ±2% or ±0.015NTU，greater one； 40-100NTU: reading ±5% | |
Temp | Principle | Thermistor method |
Range | 0℃～80℃ | |
Resolution | 0.1℃ | |
Accuracy | ±0.5℃ |
