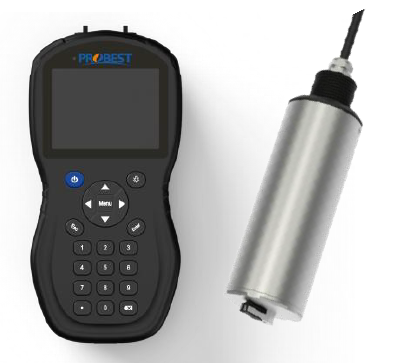

POIL-700 Portable Oil In Water Monitoring Probe | PMI800-OIL Portable Oil-in-Water Water Quality Analyzer

Product Introduction

The POIL-700 portable oil in water monitoring probe is the supporting sensor of PMI800-OIL portable oil-in-water water quality analyzer, adopting advanced ultraviolet fluorescence optical principle for real-time quantitative detection of petroleum aromatic hydrocarbons and conjugated double bond compounds in water bodies今日头条.

This portable oil content monitoring probe converts fluorescence intensity excited by UV LED light source into accurate oil concentration data without chemical reagents, sample dilution or complex pretreatment. Matched with PMI-800 portable host, it supports field handheld measurement and long-term online continuous monitoring. Equipped with auto cleaning module, SUS316L corrosion-resistant housing, IP68 waterproof rating, the oil in water monitoring probe features fast response, low power consumption, anti-ambient light interference and large-capacity data storage, widely applied in environmental surface water, groundwater, drinking water and pollution source discharge oil content real-time monitoring.

H1: POIL-700 Portable Oil In Water Monitoring Probe – PMI800-OIL Portable Oil-in-Water Analyzer System

H2 1. Working Principle of Portable Oil in Water Monitoring Probe

POIL-700 oil in water monitoring probe applies UV fluorescence detection technology, the core testing principle of mainstream water oil sensors in environmental monitoring industry.

1. Built-in low-power LED ultraviolet light source irradiates water samples;

2. Aromatic hydrocarbons in petroleum pollutants absorb UV light and generate characteristic fluorescence signals;

3. Unique optical & electronic filtering eliminates ambient light interference;

4. Convert fluorescence intensity into standard oil concentration value (0–50mg/L NDSA) via built-in algorithm;

5. Transmit data to PMI800-OIL portable host for real-time display, storage and export.

   No reagents, no dilution, zero secondary pollution, stable long-term operation for field and online oil-in-water monitoring.

H2 2. Core Advantages of POIL-700 Oil In Water Monitoring Probe

• Portable Matching Design for PMI800-OIL Host: Ergonomic handheld host with anti-slip wristband, the oil in water monitoring probe auto identifies connected host, automatic reading interface adaptation;

• UV Fluorescence Optical Sensor, Low Maintenance: Auto cleaning function reduces manual maintenance frequency, SUS316L probe body anti-corrosion for long-term underwater deployment;

• High Precision & Stable Testing: 0.01mg/L high resolution, ≤±10% or ±0.3mg/L measurement accuracy, ≤±5% repeatability for reliable oil content data;

• Complete Data Recording System: The whole portable oil monitoring system stores over 100,000 test records, USB one-click data export for environmental reporting;

• Flexible Field Operation: Built-in rechargeable battery, USB direct charging without battery removal, short response time to support continuous real-time measurement;

• Strong Environmental Adaptability: IP68 probe protection rating, IP67 host, working temperature 0–45℃, storage temperature -15~50℃, 3m standard extendable cable for deep water monitoring;

• Anti-interference Optical Technology: Exclusive light filtering structure blocks sunlight and indoor light disturbance, suitable for outdoor open-air water sampling monitoring.

H2 3. Wide Application Scenarios of Portable Oil In Water Monitoring Probe

This oil in water monitoring probe is a standard water quality testing sensor for environmental protection, water treatment and industrial wastewater industries, applicable scenes include:

1. Surface water real-time oil content online monitoring (rivers, lakes, reservoirs);

2. Groundwater & drinking water source oil pollution early warning detection;

3. Industrial pollution source wastewater discharge oil emission monitoring;

4. Oil spill emergency field rapid sampling measurement;

5. Environmental law enforcement portable spot inspection;

6. Water plant, petrochemical plant circulating water oil concentration continuous monitoring.

H2 4. Complete Technical Specifications

H2 5. System Composition of PMI800-OIL Portable Oil-in-Water Analyzer

1. POIL-700 Portable Oil In Water Monitoring Probe (core testing sensor);

2. PMI-800 Portable Analyzer Host (data display, storage, parameter calibration terminal);

3. 3m signal transmission cable;

4. USB charging & data export cable;

5. Anti-slip wristband, calibration accessories, operation manual.

H2 6. FAQ

Q1: What detection principle does this portable oil in water monitoring probe adopt?

A1: POIL-700 oil monitoring probe uses ultraviolet fluorescence method, detects petroleum aromatic hydrocarbon fluorescence signal to calculate oil concentration in water, no reagent needed.

Q2: Can the oil in water probe work continuously for online monitoring?

A2: Yes, the portable oil monitoring probe supports continuous real-time measurement, equipped with auto cleaning function to meet long-term online deployment demands.

Q3: Is the POIL-700 probe compatible with other analyzer hosts?

A3: The probe is matched exclusively with PMI800-OIL portable host, the system can automatically identify the connected oil sensor and switch reading interface automatically.

Q4: What water bodies can this portable oil content monitoring probe test?

A4: Suitable for surface water, groundwater, drinking water, industrial wastewater and pollution discharge outlets oil content monitoring.

Q5: Does the portable oil monitoring system support data export?

A5: The PMI800-OIL host stores over 100,000 records, supports USB interface data export for environmental monitoring reports.

Q6: Is the underwater oil probe waterproof for long-term immersion?

A6: POIL-700 probe reaches IP68 full waterproof grade, SUS316L stainless steel body adapts to long-term underwater immersion monitoring.
