Summary

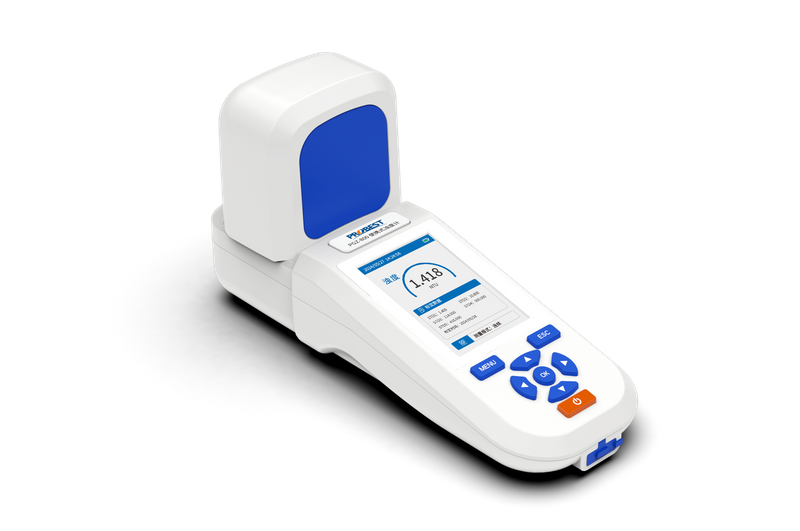

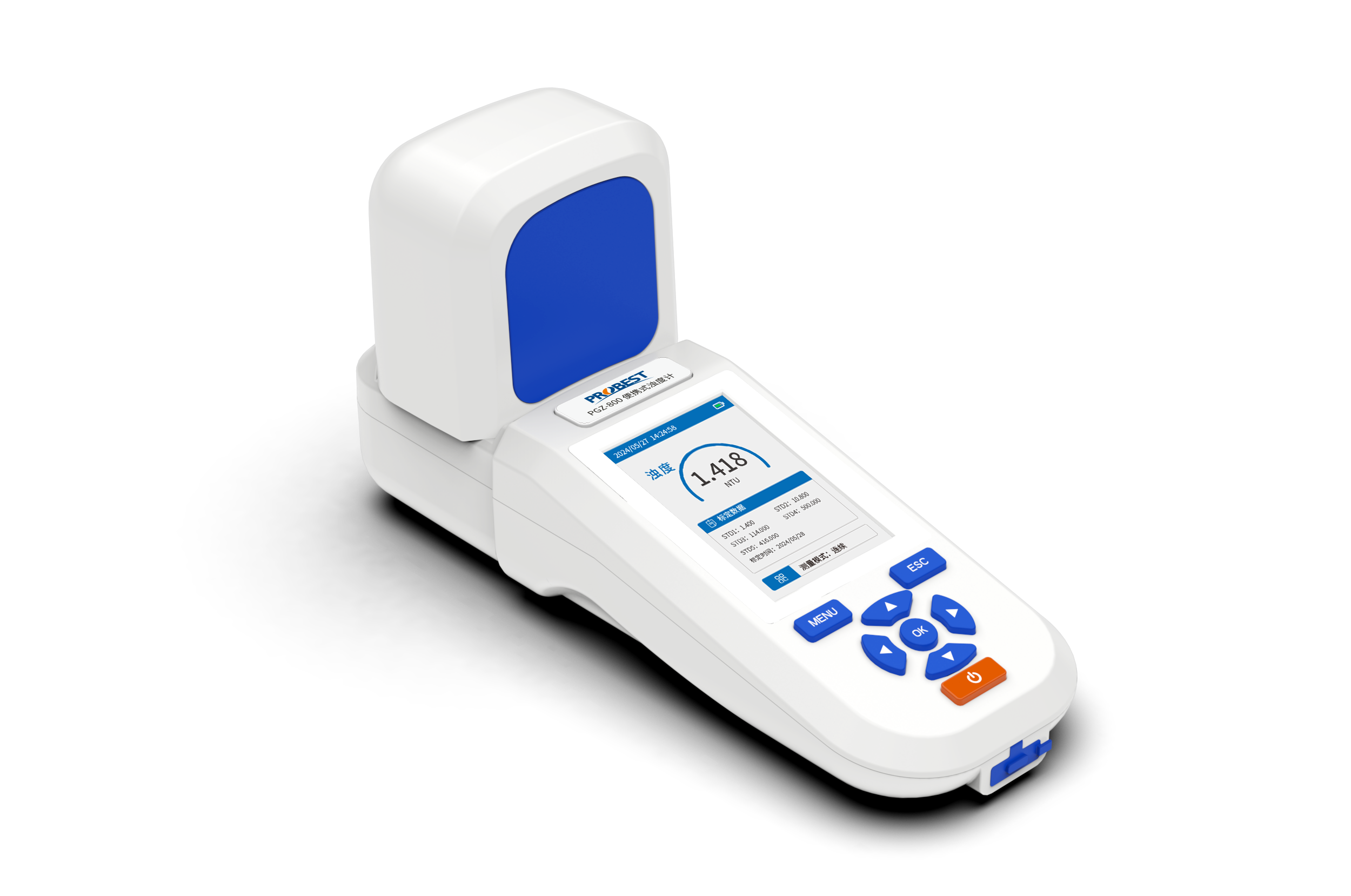

The working principle of the PGZ-800 portable turbidity meter is to emit a beam of light to the sample, and then its built-in detector will measure the intensity of the scattered light caused by turbidity in the sample, which is at a 90° angle to the incident light. Since the intensity of the scattered light is proportional to the turbidity concentration in the water sample, it can more accurately measure the turbidity content in the sample.

Features

 Dual light sources, one instrument can easily switch between ISO/EPA methods through software control; and the design complies with EPA 180.1 and ISO 7027 standards;

 Standard five-point long-term turbidity calibration standard solution;

 With IP66 protection level and good waterproof and dustproof performance;

 Support NTU, FTU, EBC multi-unit switching;

 Built-in water quality turbidity curve, users can use it directly. Support 2-5 point calibration, restore factory calibration and other data calibration methods;

 Standard long-life light source;

 Support lithium battery power supply, standard large battery capacity 5200mAh;

 Standard measurement and continuous measurement modes. It has standard single measurement function, and also supports continuous measurement and stores data according to the set storage time interval;

 Built-in clock memory storage system, supports storage of measurement and correction data;

 Built-in large-capacity memory card, which can store and call more than 10 million groups of measurement data for a long time;

Application

Ø   Purified water plants, water plants, domestic sewage treatment plants;

Ø   Environmental protection departments, industrial water, pharmaceutical industry, epidemic prevention departments, hospitals, etc.

Specification
