PMI800
Measurement Principle

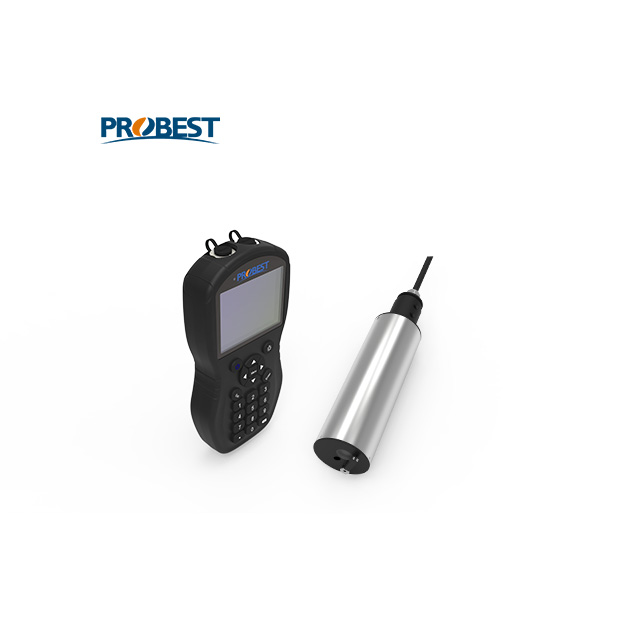

PMI800-SS portable suspension analyzer solids analysis consists of PMI-800 hand operator and PSS-800 suspension
sensor. The SS sensor is based on a combined infrared absorption scatter ray method, and the ISO 7027 method can be used to continuously and accurately determine the suspended
matter (sludge concentration). The suspended matter
(sludge concentration) value was determined according to ISO
7027 infrared double scattering light technology without chromatic influence.
Features
IP66 protection for portable host .
Ergonomic curve design with rubber washers for hand-
held operation, easy to grasp in wet conditions for water
testing.
Factory calibration, no calibration required in one year,
can be calibrated on site.
Easy using and fast using in the site, Digital host & plug
design with portable host.
With USB interface, also can be charged the built-in
battery and export data through USB interface.
Applications
Widely used in water quality portable monitoring of SS Sludge Concentration analysis in waters such as aquaculture, surface water, scientific research universities and other fields.
Technical Specifications
30
Measuring Range | 0.1-20000 mg/L、0.1-45000 mg/L 、0.1-120000 mg/L(optional) | ||||
Accuracy | Less than ±5%(homogeneity of the sludge) | ||||
Resolution | 0.1mg/L | ||||
Calibration | Standard calibration, water calibration | ||||
Shell Material | SS sensor:SUS316L Operator:ABS+PC | ||||
Storage Temp. | 1-45°C | ||||
Operating Temp | SS sensor size:Diam60*Length 256mm Weight:1.65KG | ||||
Portable Host:203*100*43mm(L*W*H):Weight: 0.5KG | |||||
Protective rate | Portable Host: IP66，SS sensor: IP68 | ||||
Cable length | Standard: 3M(Prolong able) | ||||
Display | 3.5〞colorful LED, Adjustable when Backlight | ||||
Data Storage | 8G | ||||
