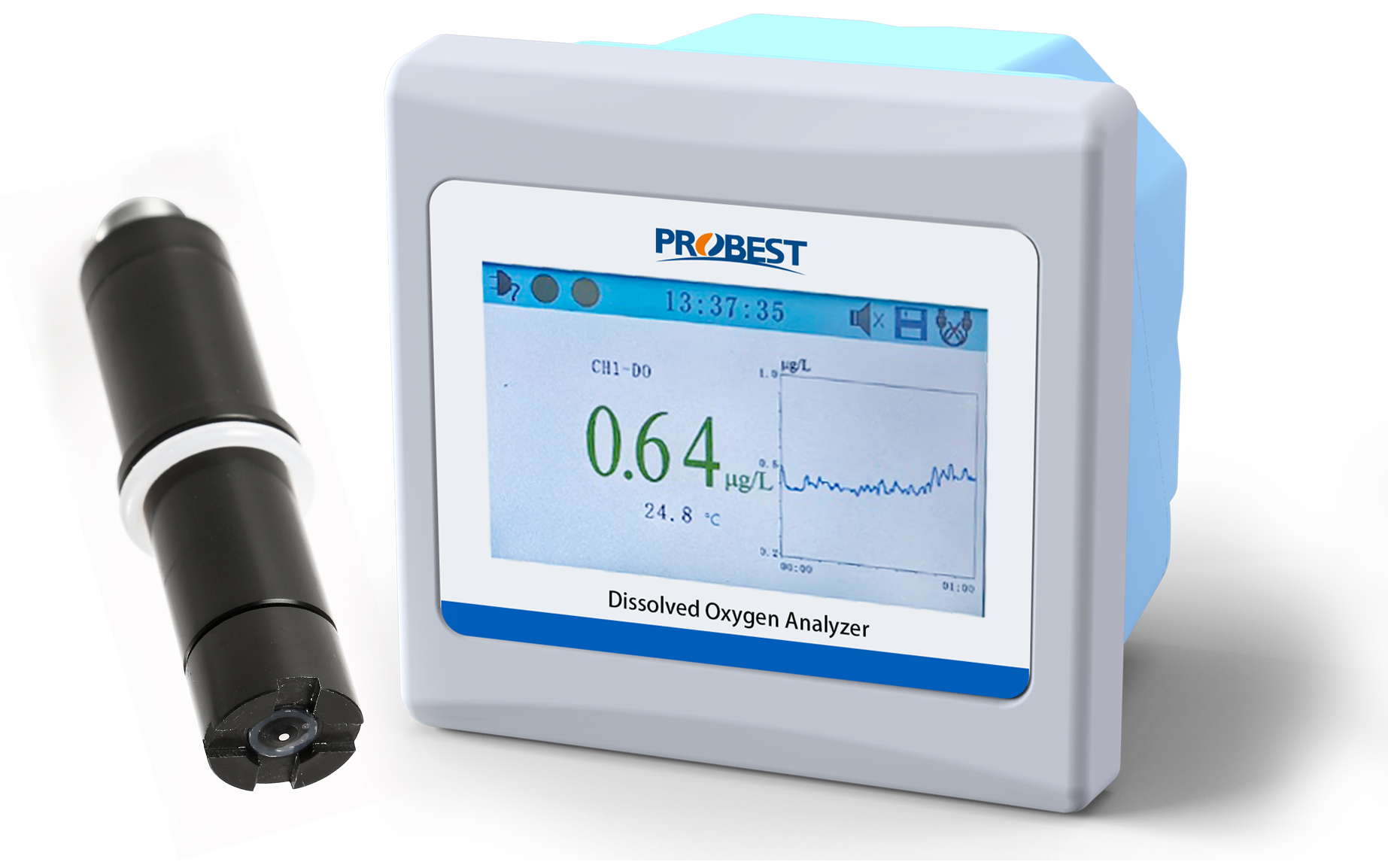

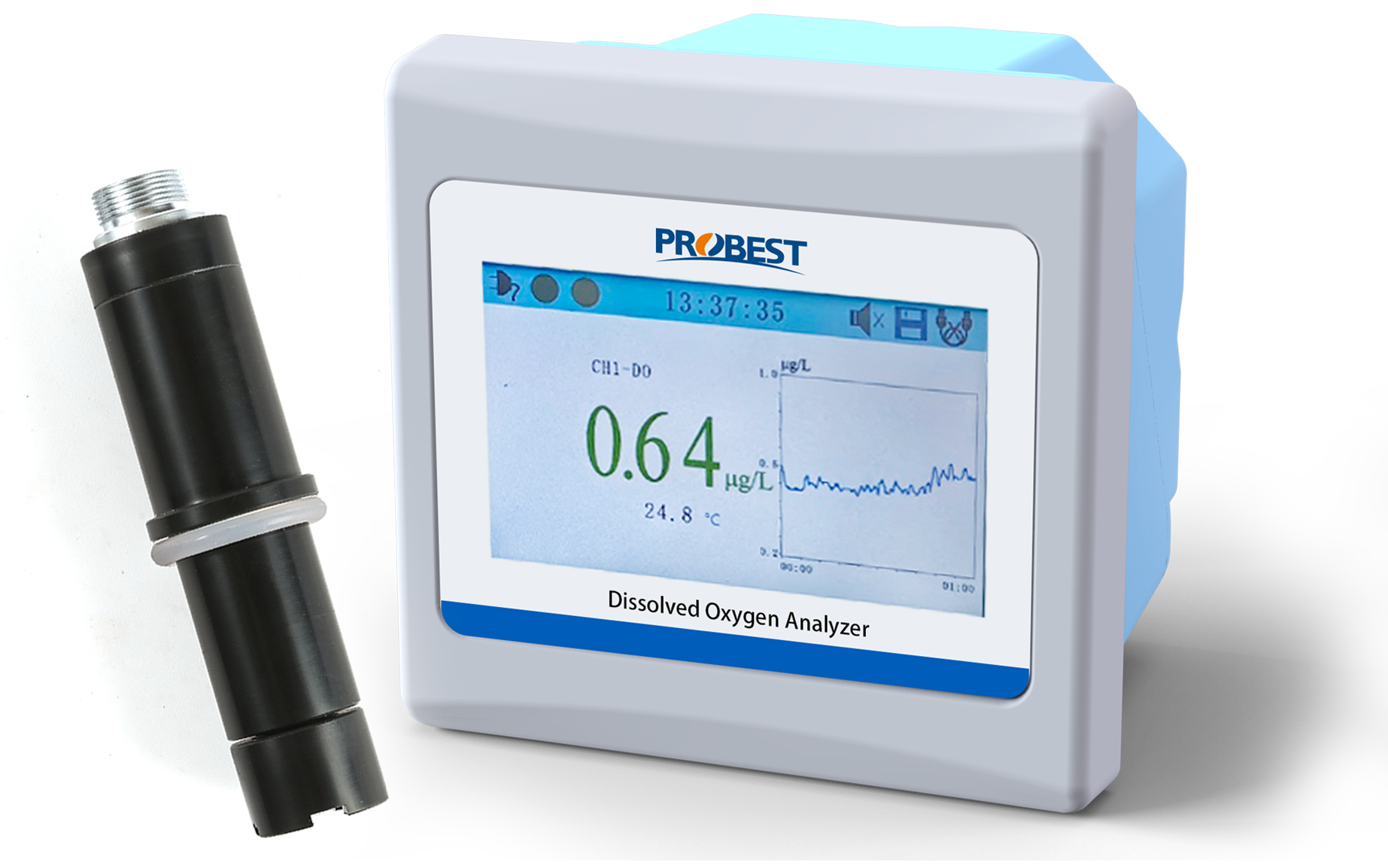

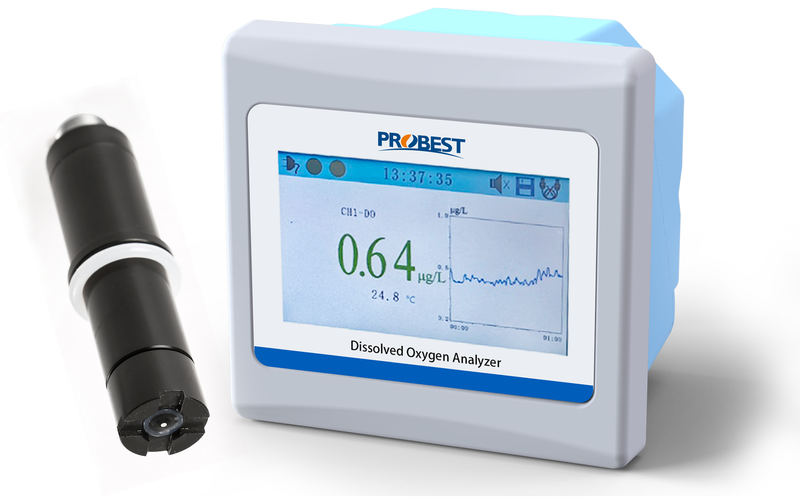

PMDO-700 Series Online PPB Low-Level DO Dissolved Oxygen Analyzer Continuously Monitor Test Pure Water Trace

The trace dissolved oxygen analyzer is a highly sensitive on-line analytical instrument. Composed of a main unit, sensor, flow cell, and cable, it features high sensitivity, fast response, and user-friendly operation, specifically designed for measuring trace-level (ppb-level) oxygen concentration in gas-water/gas media.
Oxygen measurement adopts the electrochemical polarography method. During measurement, the oxygen sensor undergoes a redox reaction to generate a diffusion current, whose magnitude is proportional to the oxygen concentration in the sample.
Availability:
Quantity:
  • PMDO-700

  • PROBEST

PMDO-700 Series On-line Trace Dissolved Oxygen Analyzer

1.1 Measurement Principle

The trace dissolved oxygen analyzer is a highly sensitive on-line analytical instrument. Composed of a main unit, sensor, flow cell, and cable, it features high sensitivity, fast response, and user-friendly operation, specifically designed for measuring trace-level (ppb-level) oxygen concentration in gas-water/gas media.



Oxygen measurement adopts the electrochemical polarography method. During measurement, the oxygen sensor undergoes a redox reaction to generate a diffusion current, whose magnitude is proportional to the oxygen concentration in the sample.


1.2 Functional Features

· High-resolution color touch screen: 800×480 resolution, Chinese menu, easy operation

· Real-time curve display: Simultaneous digital and curve presentation for intuitive results
Multi-channel setting: Supports 4 oxygen sensors for cost efficiency

· Convenient installation & maintenance: Direct fixed mounting (no base needed); rear wiring for reliability
Plug-in sensor design: Facilitates easy maintenance and replacement

· High precision & sensitivity: Detection limit down to 0.1μg/L or 0.01μg/L; resolution 0.1μg/L or 0.01μg/L
Fast response: Typically 3 minutes from air to μg/L-level concentration

· Long maintenance cycle & low consumable cost: Electrode maintenance every 6–8 months under normal use
Large data storage: Holds 1.5 million records with historical curve query function

· 4–20mA current output and RS485 communication


1.3 Typical Application Scenarios

· Trace dissolved oxygen analysis for deoxygenated water in power plants and waste heat boilers

· Trace oxygen monitoring in ultra-pure water processes for semiconductor chip packaging and high-end PCB manufacturing

1.4 Technical Parameters

Parameter

Specification

Display

800×480 color touch screen, Chinese menu

Channels

Up to 4 dissolved oxygen channels

Measurement Range

0.01μg/L–20.00mg/L

Resolution

0.1μg/L or 0.01μg/L (optional)

Measurement Error

±1.5%FS or 1.0μg/L (whichever is larger)

Response Time (T90)

<30s

Medium Temperature

0–50℃

Temperature Resolution

0.1℃

Sample Flow Rate

100–400mL/min

Working Environment

Temperature: 0–50℃; RH: ≤90%

Output Current

0/4–20mA

Current Error

±0.01mA

Max. Load Resistance

800Ω (at 20mA)

Alarm Outputs

2-way alarm relays

Power Supply

AC 220V / DC 24V

Data Storage

1.5 million records

Communication

RS485

Weight

800g

Installation

Cutout/wall-mounted/pipeline

Cutout Size

138mm×138mm
