PPH-500B-J
PROBEST
90268090

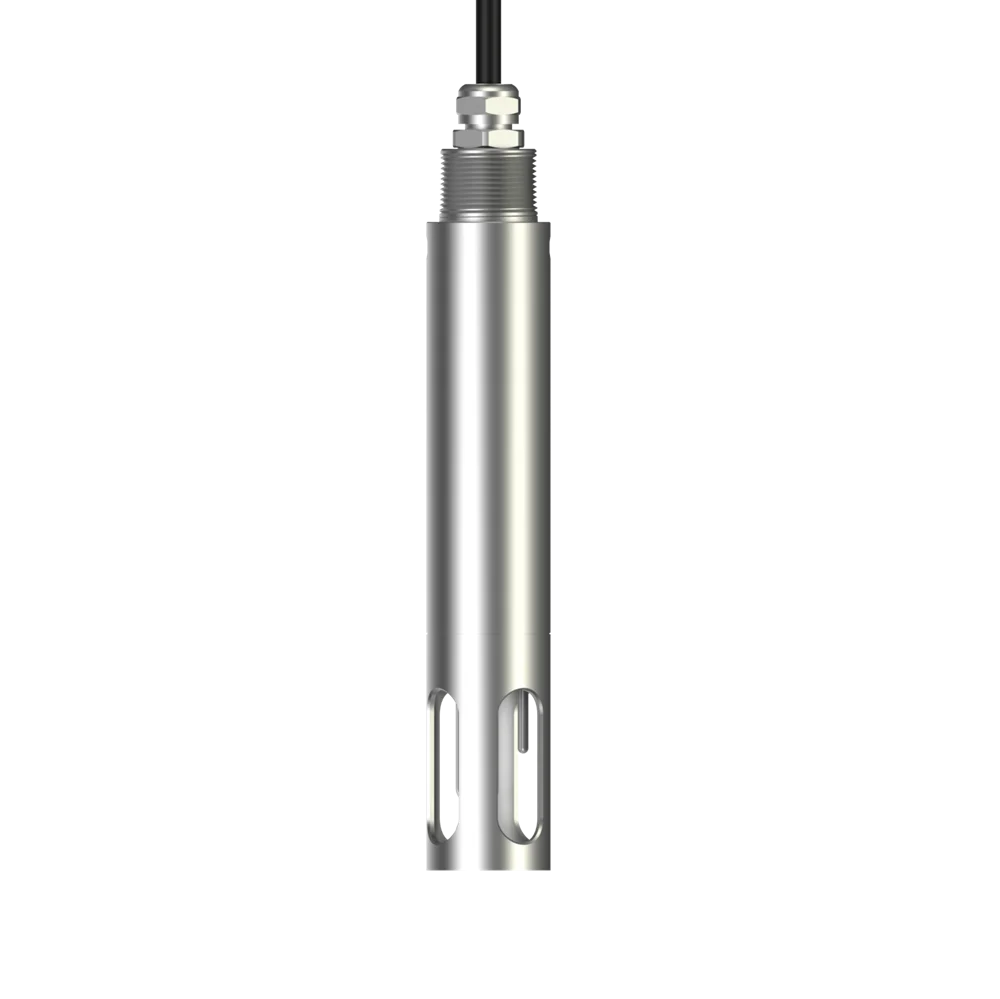

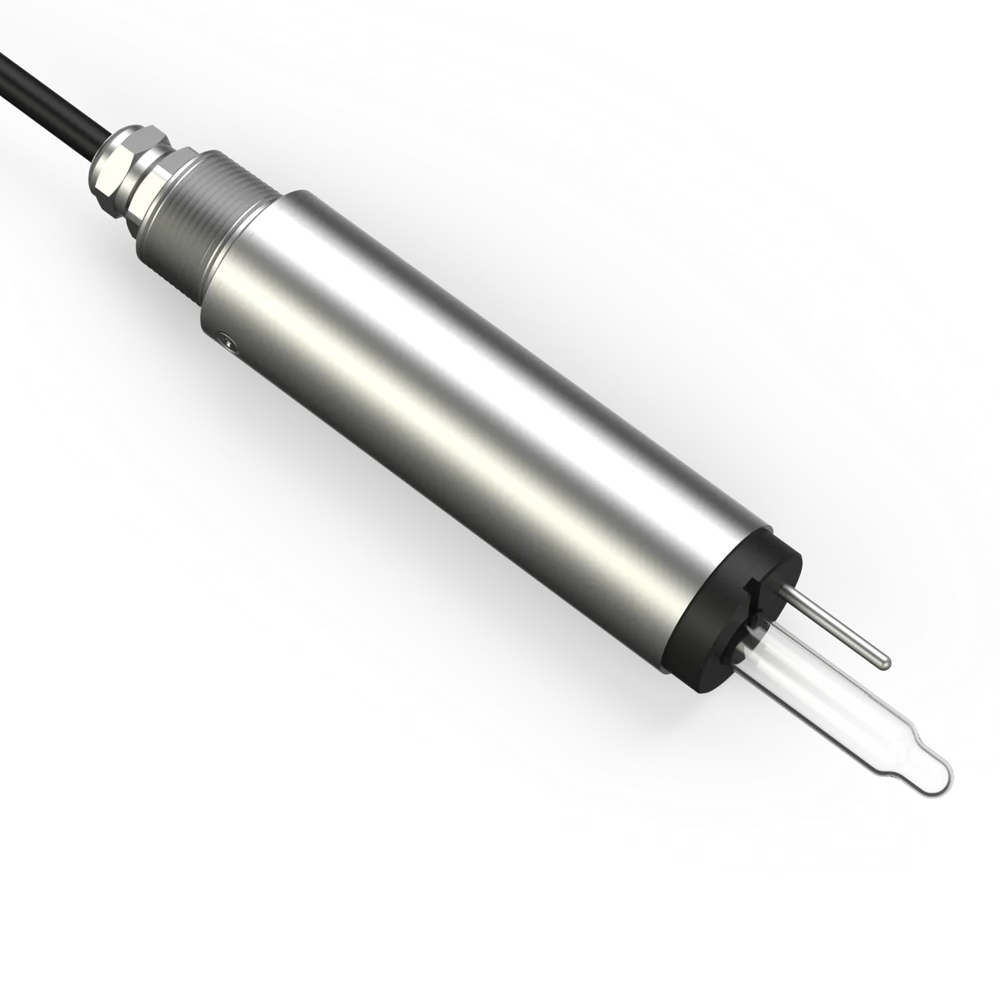

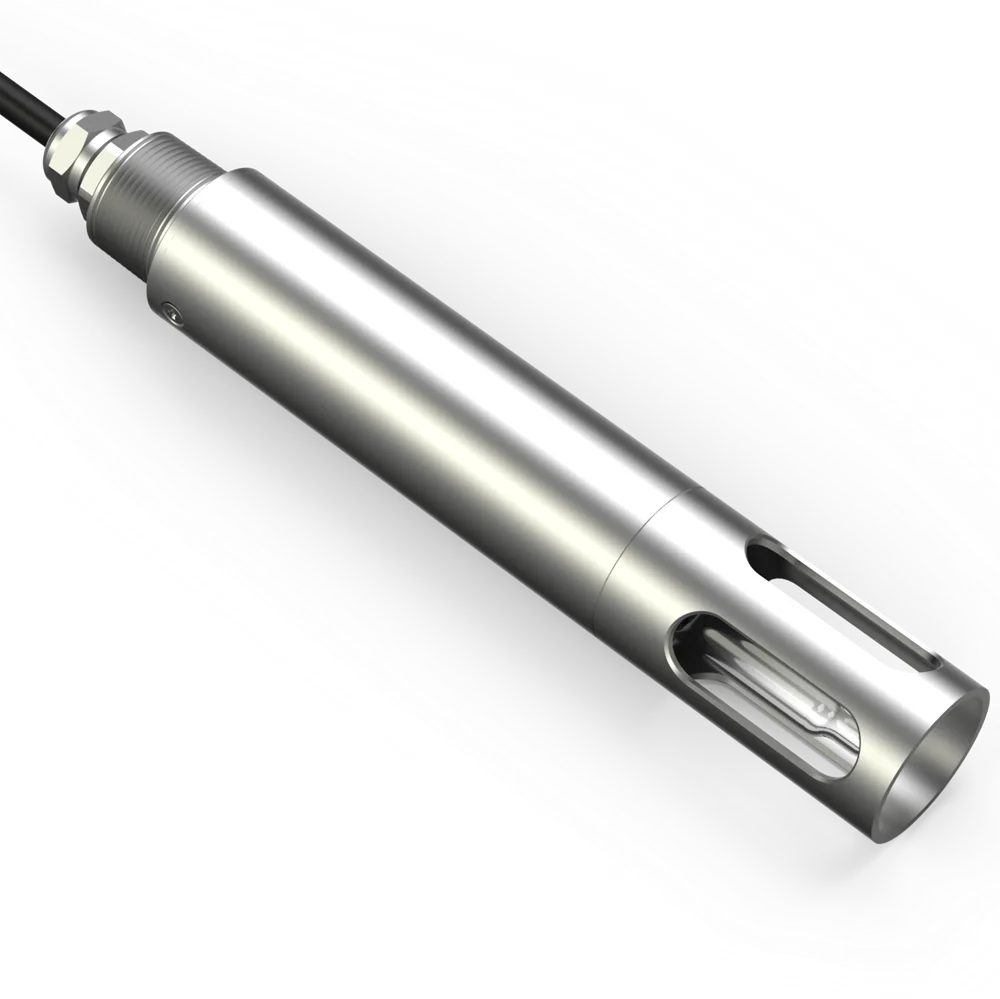

n PROBEST PPH-500B-J Digital Replaceable PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor Application, is for the Surface water, waterworks, aquaculture monitoring.
PROBEST PPH-500B Digital Replaceable PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor sensor is also for the Municipal sewage, industrial wastewater, sewage treatment, industrial process
We have two types for your choice, one is PPH-500B-J (replaceable Ph sensor), another is PPH-500B couldn't be changable. Contact us.
n PROBEST PPH-500B IP68 Digital Water Quality Analyzer Hot Sell Reliable Online PH Sensor Water Analyzer Monitor Technical Specifications
Measuring range | 0-14pH |
Main material | 316L Stainless steel + POM；Cable: PUR; Electrode: Glass core |
Resolution | 0.01pH |
Repeatability | ±0.1pH |
Precision | ±0.1pH |
Temperature range | -15-100℃ |
Temp. resolution | 0.1℃ |
Temp. accuracy | 0.5℃ |
Electrode withstand voltage | 0-0.1Mpa |
Electrode Temp. resistance | 0-45℃ (Non-freezing) |
Communication protocol | MODBUS RS485 |
Power supply | AC：85-500VAC ;DC：9-36VDC |
Output | 3-way 4-20mA |
Relay | Three-way relays, programmed response parameter and response value. |
Protective rate | Sensor：IP68/NEMA6P；Transmitter：IP66/ NEMA4X |
Dimensions | Sensor：Dia34mm*L 252mm;Transmitter：145*125*162mm(L*W*H) |
Mounting thread | 3/4 inch front and rear threads |
Cable length | Standard cabel:10M Max extended to 200M. |
Warmly welcome online / on-site meeting with us to show you around our factory and know each other better.
PROBEST PPH-500B Digital Replaceable PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor
pH Online Water Quality Monitors Sensors
PROBEST PPH-500B Digital PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor Tool
| Model No. | PPH-500B Digital PH Sensor |
| Main materials | 316L casting |
| Measurement range | 0-14 pH |
| Resolution | 0.01 pH |
| Accuracy | 0.1 pH |
| Temperature Range | -15~100°C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | 0.5°C |
| Electrode withstand voltage | 0-0.1Mpa |
| Electrode temperature resistance | 0.0~45.0°C |
| Power supply | 9-36 vdc |
| Protection rating | IP68/NEMA6P |
| Size | Diameter 34mm* Length 252mm |
| Mounting thread | 3/4" front and rear threads |
| Cable length | Standard: 10 m, can be extended up to 200m |
| Remark | Digital transmitters: UNI-20 / MUC-200 for your choice. |
Typical application
It is widely used in pH monitoring in water treatment, hydrological monitoring, wastewater treatment, swimming pools, fish ponds and fertilizers, chemicals, and biology.
Main features
1. Safety Enough: Power supply and output isolation design to ensure electrical safety
2.Strong anti-interference ability, Power supply and communication chip built-in protection circuit,
3. With a comprehensive protection circuit design, it can work reliably without additional isolation equipment
4. The circuit part is designed inside the electrode, the environment is well tolerated, and the installation operation is easier.
5. RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication, can receive remote commands
6. Output more electrode diagnostic information, more intelligent
7. Internal integrated memory, memory calibration and setting information can be memorized after power off
n PROBEST PPH-500B-J Digital Replaceable PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor Application, is for the Surface water, waterworks, aquaculture monitoring.
PROBEST PPH-500B Digital Replaceable PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor sensor is also for the Municipal sewage, industrial wastewater, sewage treatment, industrial process
We have two types for your choice, one is PPH-500B-J (replaceable Ph sensor), another is PPH-500B couldn't be changable. Contact us.
n PROBEST PPH-500B IP68 Digital Water Quality Analyzer Hot Sell Reliable Online PH Sensor Water Analyzer Monitor Technical Specifications
Measuring range | 0-14pH |
Main material | 316L Stainless steel + POM；Cable: PUR; Electrode: Glass core |
Resolution | 0.01pH |
Repeatability | ±0.1pH |
Precision | ±0.1pH |
Temperature range | -15-100℃ |
Temp. resolution | 0.1℃ |
Temp. accuracy | 0.5℃ |
Electrode withstand voltage | 0-0.1Mpa |
Electrode Temp. resistance | 0-45℃ (Non-freezing) |
Communication protocol | MODBUS RS485 |
Power supply | AC：85-500VAC ;DC：9-36VDC |
Output | 3-way 4-20mA |
Relay | Three-way relays, programmed response parameter and response value. |
Protective rate | Sensor：IP68/NEMA6P；Transmitter：IP66/ NEMA4X |
Dimensions | Sensor：Dia34mm*L 252mm;Transmitter：145*125*162mm(L*W*H) |
Mounting thread | 3/4 inch front and rear threads |
Cable length | Standard cabel:10M Max extended to 200M. |
Warmly welcome online / on-site meeting with us to show you around our factory and know each other better.
PROBEST PPH-500B Digital Replaceable PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor
pH Online Water Quality Monitors Sensors
PROBEST PPH-500B Digital PH Sensor Online Water Quality Detector Probe 316L Body Industry Water Analyzer Monitor Tool
| Model No. | PPH-500B Digital PH Sensor |
| Main materials | 316L casting |
| Measurement range | 0-14 pH |
| Resolution | 0.01 pH |
| Accuracy | 0.1 pH |
| Temperature Range | -15~100°C |
| Temperature resolution | 0.1 °C |
| Temperature accuracy | 0.5°C |
| Electrode withstand voltage | 0-0.1Mpa |
| Electrode temperature resistance | 0.0~45.0°C |
| Power supply | 9-36 vdc |
| Protection rating | IP68/NEMA6P |
| Size | Diameter 34mm* Length 252mm |
| Mounting thread | 3/4" front and rear threads |
| Cable length | Standard: 10 m, can be extended up to 200m |
| Remark | Digital transmitters: UNI-20 / MUC-200 for your choice. |
Typical application
It is widely used in pH monitoring in water treatment, hydrological monitoring, wastewater treatment, swimming pools, fish ponds and fertilizers, chemicals, and biology.
Main features
1. Safety Enough: Power supply and output isolation design to ensure electrical safety
2.Strong anti-interference ability, Power supply and communication chip built-in protection circuit,
3. With a comprehensive protection circuit design, it can work reliably without additional isolation equipment
4. The circuit part is designed inside the electrode, the environment is well tolerated, and the installation operation is easier.
5. RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication, can receive remote commands
6. Output more electrode diagnostic information, more intelligent
7. Internal integrated memory, memory calibration and setting information can be memorized after power off
