MP301
PROBEST
90268090

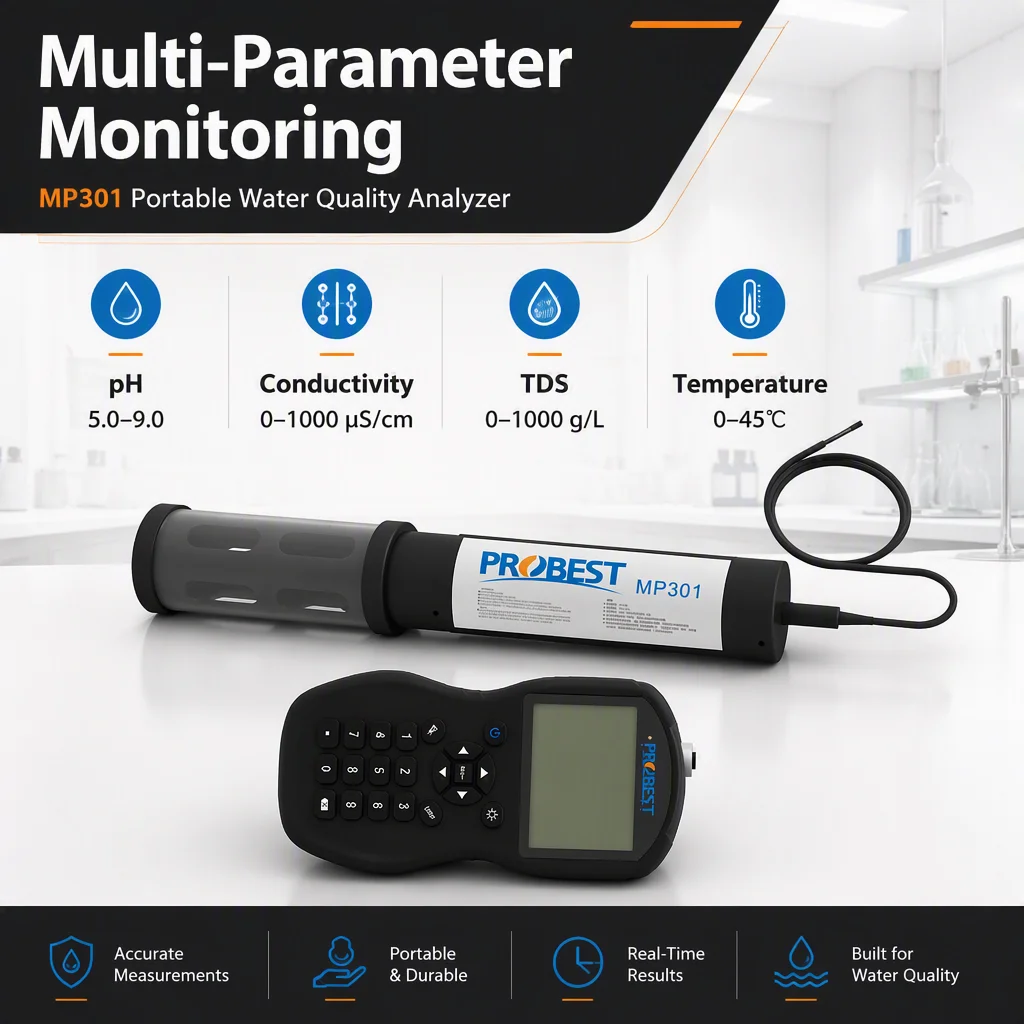

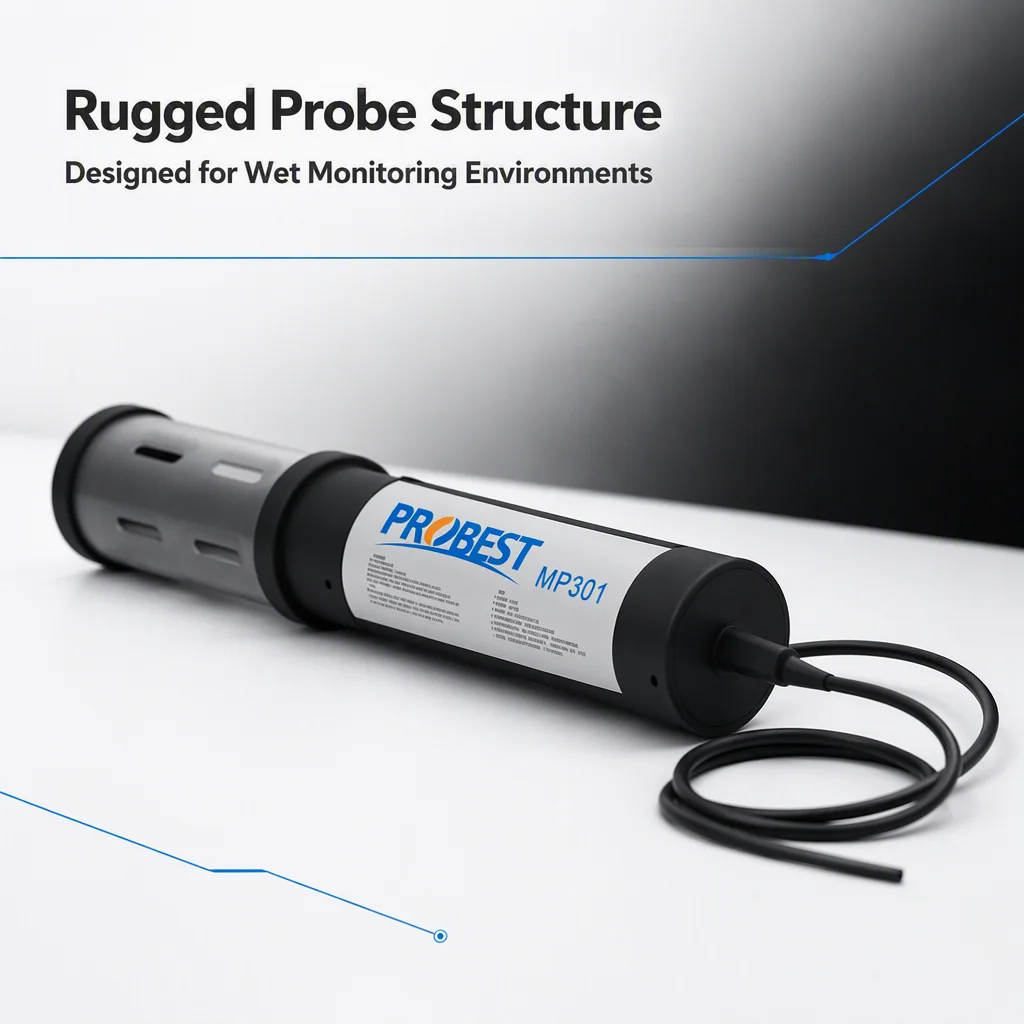

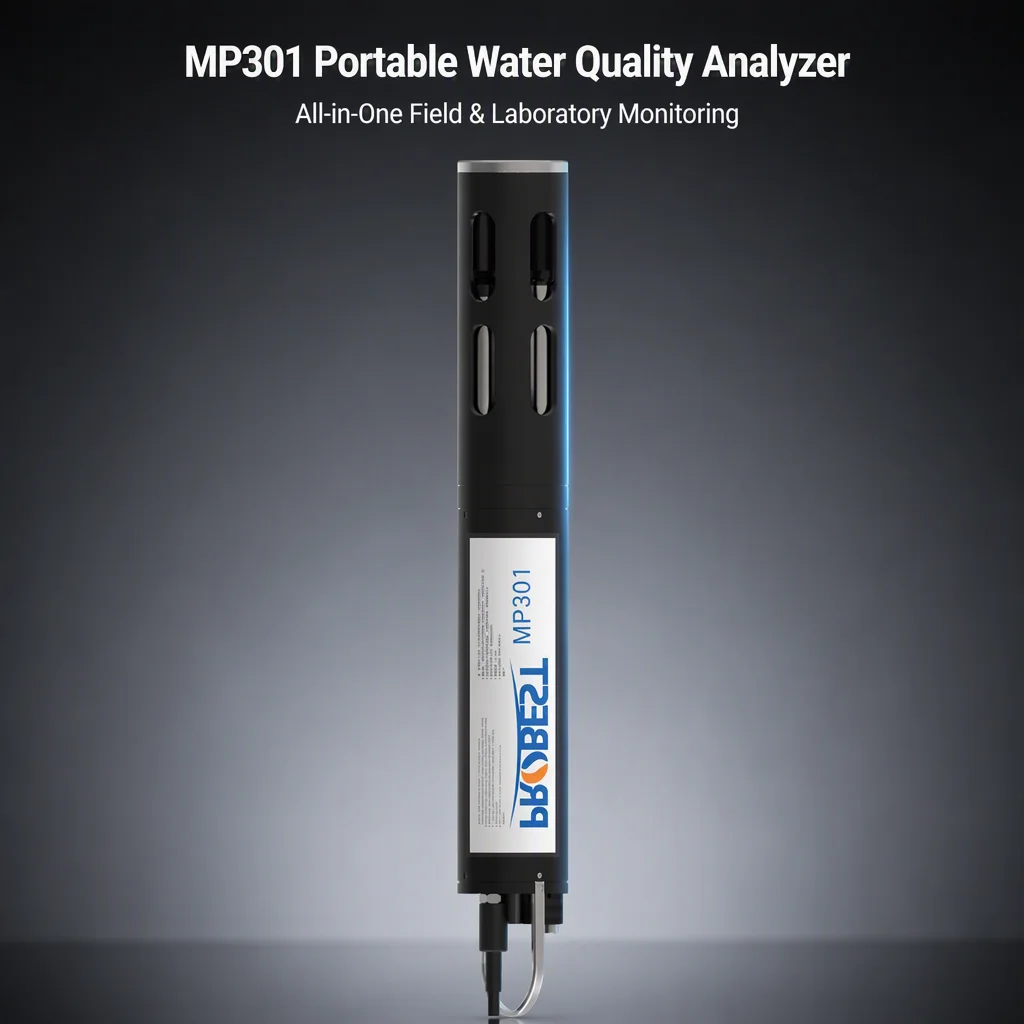

MP301 multi-parameter online analyzer: suitable for long-term on-line online monitoring, measuring up to 7 parameters simultaneously, including: Temperature, Depth, pH, ORP, Conductivity & Salinity & TDS, Turbidity, DO, Chlorophyll, Blue-green algae, Ammonia nitrogen, Nitrate nitrogen, Chloride ions, Fluoride ions. Optional accessories such as bluetooth module, battery pack, and handheld communicator are also available for easy portable measurement.
HDC-100A Communicator: In order to make the MP301 integrated multi-parameter analyzer complete data reading, parameter setting and calibration of the analyzer without PC, and it can be applied to handheld and portable applications. On the occasion, the company has developed a HDC-100A handheld device for use with it. Built-in GPS receiver; with bluetooth function; with USB interface and data storage function; designed with ergonomic curve, rubber gasket, suitable for hand-held operation, easy to grasp in wet environment.
n Features
u The host can flexibly set the sampling interval, optimize the working/sleep time, and reduce the overall power consumption. It can be applied to battery power, solar power, and mains power supply.
u With built-in battery, optional battery to achieve battery power in a short time; purchase in your local market
u The host can select bluetooth communication function to realize data transmission via bluetooth;
u Optional handheld communicator, and bluetooth wireless communication mode with the handheld communicator, data viewing, calibration is convenient, and can realize handheld applications;
u The host has LED lights to display the current running status of the host and the working status of bluetooth;
u The host has a data storage function, and the amount of stored data is 100,000;

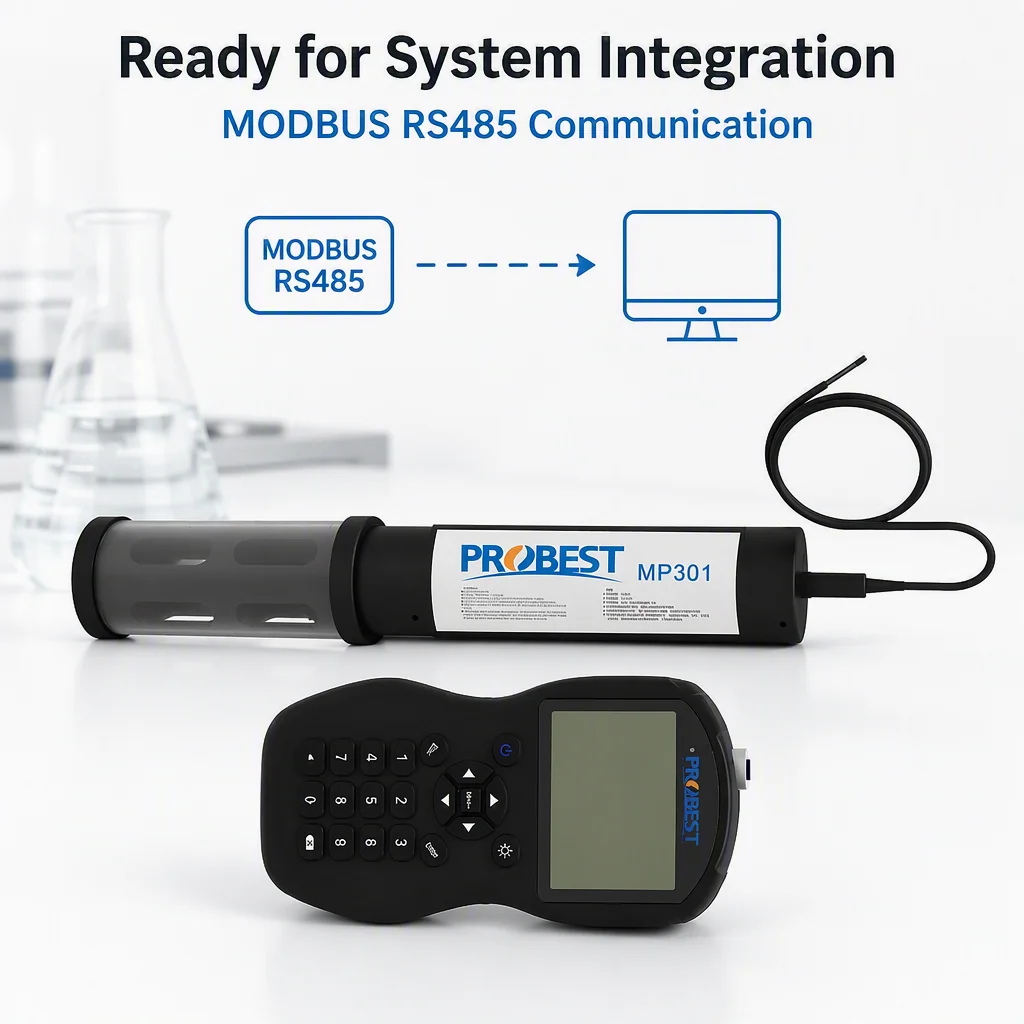

u Standard ModbusRS-485 digital signal output, can be connected with third-party data loggers or remote devices for integration and networking;
u The electrode can be replaced directly in the field, and the maintenance is simple and fast;
u Optional self-cleaning system allows the product to obtain accurate data for a long time;
u Sensor power supply positive and negative reverse connection protection;
u SensorRS485 A/B terminal is connected to power supply protection.
n Software Functions
u Operation software of Windows interface has the function of settings,online monitoring,calibration and Historical data download.
u Convenient and efficient parameters settings.
u Real-time data and curve display can help users intuitively obtain the data of measured water bodies.
u Convenient and efficient calibration functions.
u Intuitively and accurately understanding and tracking the parameters’ changes of the measured water bodies in a certain period through the Historical data download and curve display.
n Application

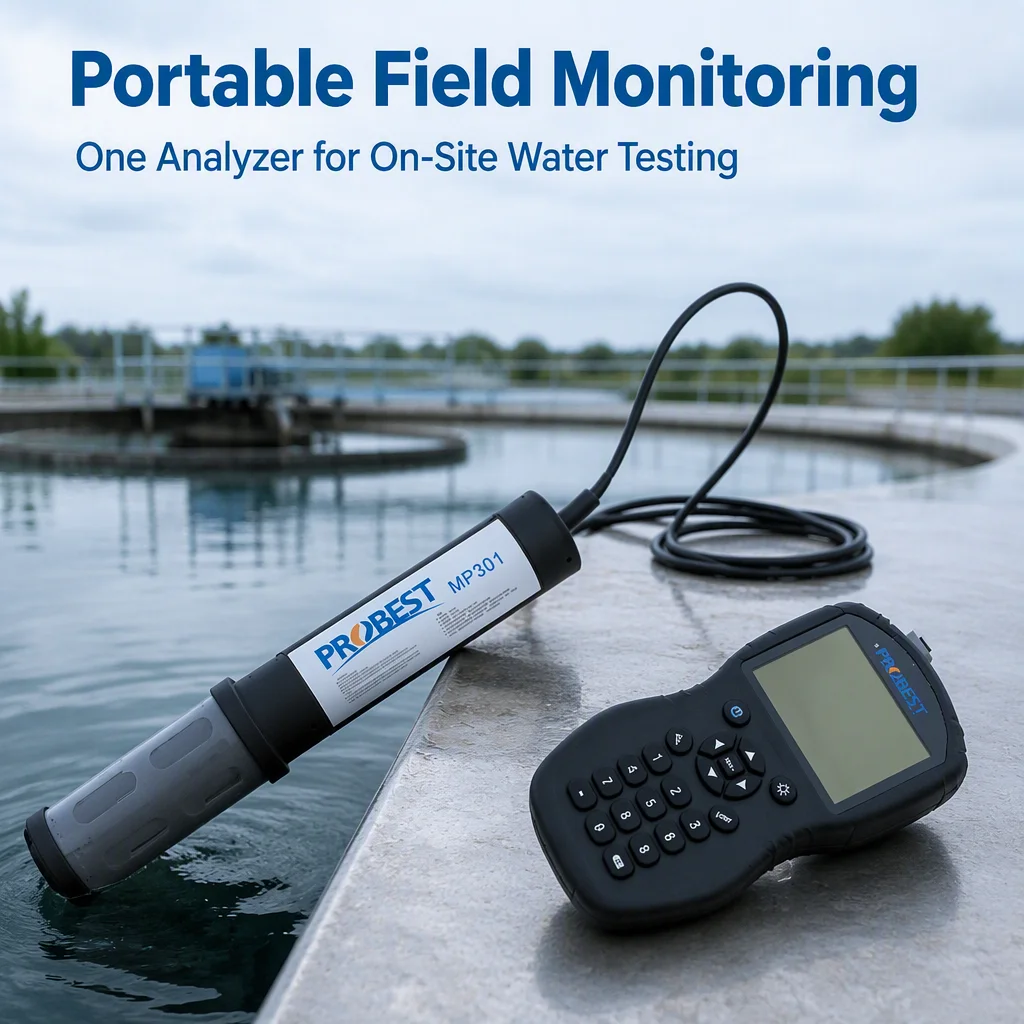

u Multi-Parameter water quality online monitoring of rivers, lakes and reservoirs.
u Water quality online monitoring of drinking water source.
u Water quality online monitoring of ground water.
u Water quality online monitoring of sea water.

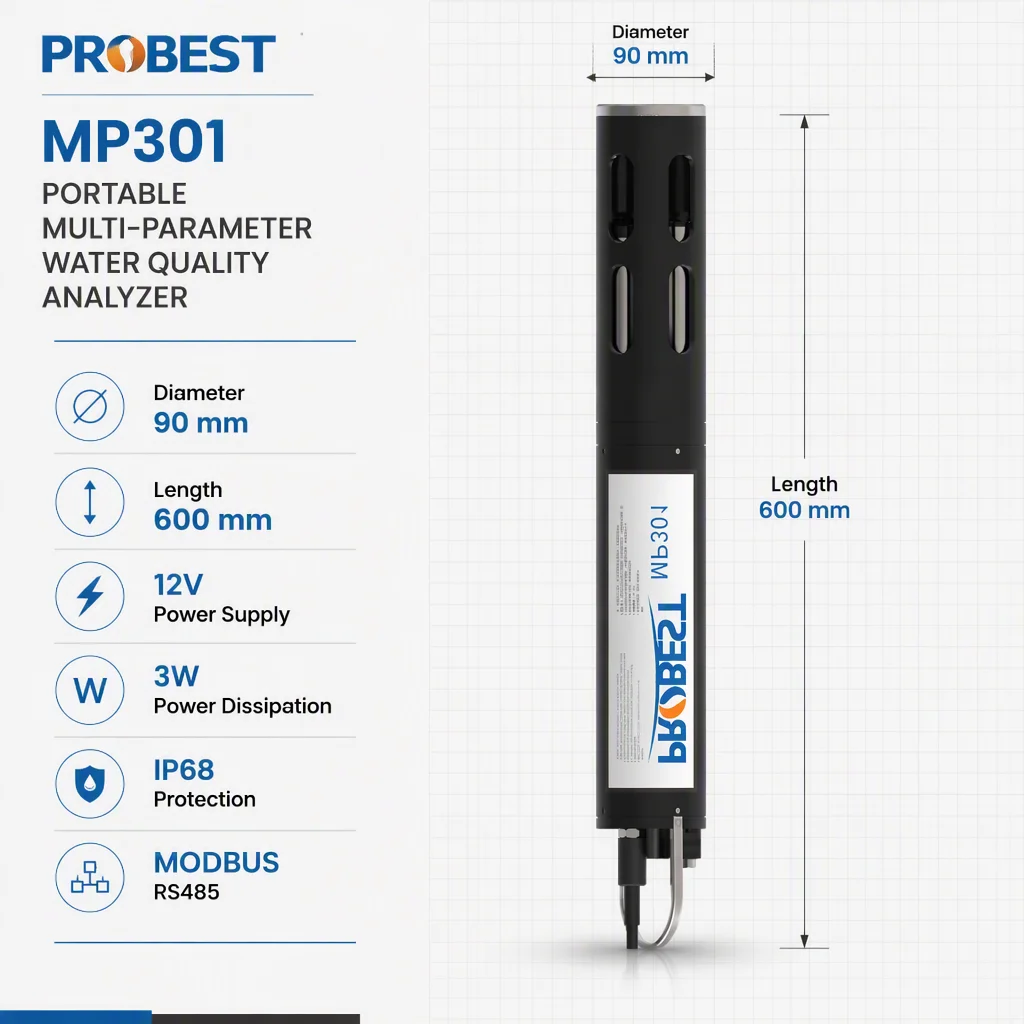

n Mainframe Physical Indicators
Power Supply | 12VDC | Measuring Temperature | 0~45℃ |
Power Dissipation | 3W | Storage Temperature | 0~50℃ （non-freezing） |
Communication protocol | MODBUS RS485 | Protection Class | IP68 |
Size | Diameter 90*Length 640.5mm | Weight | 3KG |
Maximum withstand pressure depth | 30 M | Battery capacity | 8 sections, 8C, 3.6V lithium battery |
n Communicator Physical Indicators
Display | 3.5-inch color display screen with adjustable backlight |
Data storage | 8G data storage space |
Material | ABS+PC |
Power supply | Built-in battery power, battery specifications: 4 3.7V rechargeable lithium battery |
Protection level | IP67 |
Operating temperature | 0~50℃（Non-freezing） |
Storage temperature | -15~60℃ |
Size | 203*100*43mm |
Weight | 0.5KG |
n Standard Electrode Parameters
Depth (Pressure) | Principle | Pressure-sensitive Method |
Range | 0-61m(Maximum withstand pressure depth: 30M） | |
Resolution | 2cm | |
Accuracy | ±0.3% | |
Temperature | Principle | Thermistor method |
Range | 0℃~50℃ | |
Resolution | 0.01℃ | |
Accuracy | ±0.5℃ | |
pH sensor | Principle | Glass electrode method |
Range | 0-14 pH | |
Resolution | 0.01 pH | |
Accuracy | ±0.1 pH | |
ORP Sensor | Principle | Glass electrode method |
Range | -1000mV ~+1000mV | |
Resolution | 1mV | |
Accuracy | ±5mV | |
Conductivity sensor | Principle | A pair of platinum gauze electrode |
Range | 1us/cm-2000 us/cm（K=1） 100us/cm-100ms/cm（K=10.0） | |
Resolution | 0.1us/cm~0.01ms/cm（Depending on the range） | |
Accuracy | ±3% | |
Turbidity sensor | Principle | Light scattering method |
Range | 0-1000NTU | |
Resolution | 0.1NTU | |
Accuracy | ± 5% or 0.3NTU, whichever is greater | |
DO sensor | Principle | Fluorescence |
Range | 0 -20 mg/L；0-20 ppm；0-200% | |
Resolution | 0.1%/0.01mg/l | |
Accuracy | ±3% or ±0.3 mg/L, whichever is greater |
Chlorophyll sensor | Principle | Fluorescence |
Range | 0-500 ug/L | |
Resolution | 0.01 ug/L~0.1 ug/L, Depending on range | |
Accuracy | ±5% of the signal level corresponding value of 1ppb Rhodamine WT Dye | |
Blue-green algae sensor | Principle | Fluorescence |
Range | 200-300,000cells/mL | |
Resolution | 25cells/mL | |
Accuracy | ±10% of the signal level corresponding value of 1ppb Rhodamine WT Dye | |
Ammonia nitrogen | Principle | Ion selection |
Range | 0.1~100mg/L-N | |
Resolution | 0.01mg/L-N | |
Accuracy | ±10% or ±2mg/L | |
Nitrate nitrogen | Principle | Ion selection |
Range | 0.5~100mg/L-N | |
Resolution | 0.01mg/L-N | |
Accuracy | ±10% or ±2mg/L | |
Chloride | Principle | Ion selection |
Range | 3~1000mg/L | |
Resolution | 0.01~1mg/L | |
Accuracy | ±10% or ±2mg/L | |
Fluoride | Principle | Ion selection |
Range | 0.5~1000mg/L | |
Resolution | 0.01~1mg/L | |
Accuracy | ±10% or ±2mg/L |
