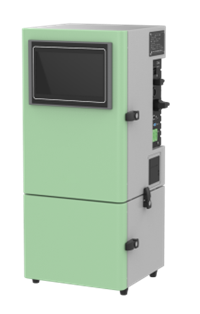

PCM200‑SO4
PROBEST
PCM200‑SO4 Sulfate Water Quality Online Automatic Monitor operates as follows: at 95°C, a specified volume of water sample is added to barium chromate and heated for digestion. Sulfate ions in the water sample undergo a displacement reaction with barium chromate to form barium sulfate, thereby displacing chromate ions. Subsequently, ammonia water is added to precipitate excess barium chromate. The supernatant is collected for colorimetric analysis. Using ultraviolet spectrophotometry, the absorbance A is measured at 440 nm. The concentration of displaced chromate ions is directly proportional to absorbance A. Sulfate content exhibits a direct proportional relationship with absorbance A.
Equipped with a 10.2‑inch TFT high‑performance embedded integrated touchscreen for clearer display, smoother operation, and more stable performance;
Adopts a proprietary adaptive quantitative device with advanced logic judgment to enhance liquid level detection and improve adaptability to complex water qualities;
Uses imported light sources for high stability and long service life;
Low reagent consumption and independent waste liquid separation and collection, effectively reducing maintenance costs;
Built‑in operation log recording function, capable of storing at least one year of raw data and operational logs;
Comprehensive intelligent alarm system: fault alerts, over‑range warnings, standard exceedance alarms, reagent depletion alerts, etc.;
Automatic data protection upon power failure, with TFT true‑color LCD touchscreen for display and control;
Automatic recovery to normal operation after restart or power restoration;
Real‑time instrument status display (measuring, idle, fault, maintenance, etc.);
Integrated dynamic flow diagrams for intuitive, user‑friendly operation and maintenance.
PCM200‑SO4, Sulfate Water Quality Online Automatic Monitor, sulfate online monitor, water quality analyzer, water quality test, water analysis, online water quality monitoring, sulfate measurement, barium chromate colorimetry, ultraviolet spectrophotometry, industrial effluent monitoring, municipal wastewater monitoring, surface water monitoring
Sulfate Water Quality Online Automatic Monitor Specification
Measurement Method | Barium Chromate Spectrophotometric Method |
Measurement Range | 0–200, 1000 mg/L (expandable) |
Accuracy | ＜30mg/L：±3mg/L ≥30mg/L：±10.0% |
Repeatability | ±8.0% |
Zero Drift | ±5.0% |
Span Drift | ±10.0% |
Voltage Stability | ±10.0% |
Actual Water Sample Comparison | ＜30mg/L：≤3mg/L； ≥30mg/L：≤10% |
Measurement Time | Minimum measurement cycle < 60 minutes |
Measurement Mode | Interval measurement (0-9999 min freely configurable) and 24-hour hourly measurement modes Single measurement, reverse control measurement |
Quality Control | Configurable time points for periodic automatic calibration Configurable time slots for automatic calibration solution verification |
Calibration Mode | User manual calibration; configurable time slots for periodic automatic calibration |
Communication Port | RS-232、RS-485、RJ45 |
Analog Signal | 4-20mA |
Control Signal | 2 ways output channels 2 ways input channels |
Environmental Requirements | Temperature: (5–40)°C, rate of change ≤ ±5°C/day; Humidity ≤ 85% (non-condensing) |
Power Supply | AC（220±10%）V，（50±0.5）Hz |
Power Consumption | <150W |
